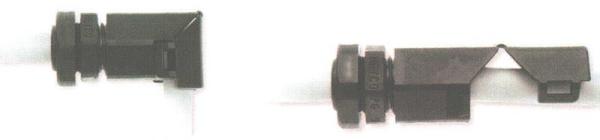

Liquid Tight Right Angle Cordgrips

For Flexible Cords. PG HUBS - For use in either clearance or threaded holes
  • Eight sizes for cable, tubing, etc. with diameters ranging from .064 (1.6 mm) to .470" (11.9 mm).
  • Each cordgrip is molded in the open position for ease of installation. After cable insertion, the cordgrip snaps closed, bending the cable without damage. This assembly method saves considerable time and money.
  • "Ratchet design" of sealing nut assembly provide superior antivibration protection and ensures a firm grip on the cable.
  • Integral "Sealing Ring" ensures a superior seal at mounting locations every time.
  • Part design provides liquid tight integrity even in the open position.
  • Acme threads on body prevent skipping and speed installation.
  • We recommend using the cordgrip with the smallest maximum diameter that will fit your application.
  • All nylon construction with Buna N gland resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL certification or testing.
  • Working temperatures : -22°F (-30°C) to 212°F (100°C).
  • Protection class IP 68 per DIN 40050 up to 70 psi (5 bar) water pressure.
  • Suitable for NEMA 6P enclosures.
  • Locknuts are included. For nylon or steel locknut specifications or to order locknuts separately.
