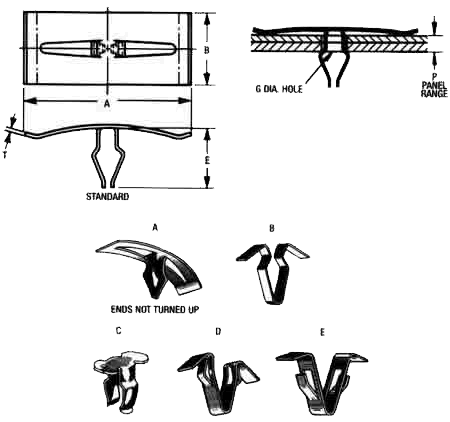

Dart-Type Fasteners

Tinnerman Dart-Type Fasteners are one of a group of Speed Clip Fasteners which are self-sufficient. That is, they require no screws, rivets, studs, welds or other secondary fastening devices. They require only a cavity or mounting hole. They can be applied from the front or top of a panel thereby eliminating many blind or limited access fastening problems. Being one-piece, they eliminate excessive small parts handling and parts inventories.

Once applied, live spring tension secures the components between the top and shoulders of the clip. The amount of clamping action here varies with the material thickness and design of the fastener. When required, most Dart-Type Speed Clips can be removed and reused.
