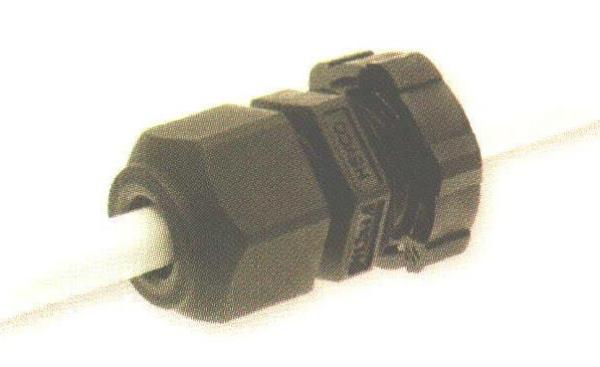

Heyco TITE" Liquid Tight Straight-Thru Cordgrips

For Flexible Cords. PG Hubs - Install in either clearance or threaded holes
US and Foreign Patents Pending
  • Widest range of cable and/or thread sizes available. Includes six threads for cables ranging from .065 (1.7 mm) to 1.260" (32.0 mm).
  • "Ratchet design" of sealing nut assembly provide superior antivibration protection and ensures a firm grip on this cable.
  • Integral "Sealing Ring" ensures a superior seal at mounting locations every time.
  • Acme threads on body prevent skipping and speed installation.
  • We recommend using the cordgrip with the smallest maximum diameter that will fit your application.
  • All nylon construction with Buna N sealing gland resists salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL certification or testing.
  • Suitable for NEMA 6P enclosures.
  • Working Temperatures : -22°F to (-30°C) to -212°F (100°C).
  • Protection class IP 68 per DIN 40050.
  • Standard flammability rating 94V-2.
  • Locknuts are included. For nylon or steel locknut specifications or to order locknuts separately.
