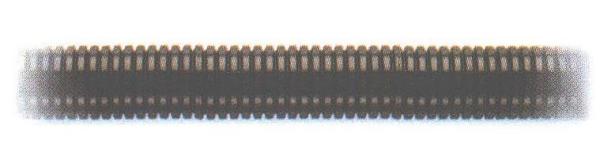

Flexicon Corrugated Conduit/Tubing - Type FPI

Extremely Flexible Polyamide 12 Nylon, Medium Weight
  • 3/8 thru 2" nominal sizes.
  • Medium wall construction.
  • Use with nylon Flexicon fittings; Straight, 90°, or 45°.
  • Highly resistant to abrasion, oil, and solvents.
  • Temperature range : -50°C to 110°C (-58°F to 230°F)
  • Highly flexible and exceptional fatigue life.
  • High impact strength and recovers if crushed.
  • UV resistant (black).
  • Particularly suited to Robotics, Automation, and/or continuous flexing.
  • IP RATING : IP 66 w/FPA Fittings IP 66, 67, 68 w/FPAX Fittings IP Rating Tested To EN60529
  • Halogen, sulphur, and phosphorus free.
  • Highly Flame Retardant.
  • Low smoke and toxicity.
  • Consult factory for heavy weight nylon 12 corrugated conduit.
  • Consult factory for Type FPR Extra Low Fire Hazard (V0) Nylon 6 corrugated conduit.
  • Consult factory for availability of gray or other colors as well as nonstandard lengths.
