Tinnerman® U-Type High Torque Fasteners

[C71469-031]

Hi-Torque U-Type Fasteners

High-Torque Fasteners. Equally at home on metal or plastic, these unique Tinnerman fasteners bring extra strength, reliability and economy wherever vibration, impact, or migration prevail.

They accept power driven screws readily, discourage cross-threading, won't clog with paint or freeze to screw threads. They are self-retaining over a wide range of panel thicknesses, yet permit trouble-free removal. Unusually high clamp loads are attainable. Prevailing torque is inherent in the design.

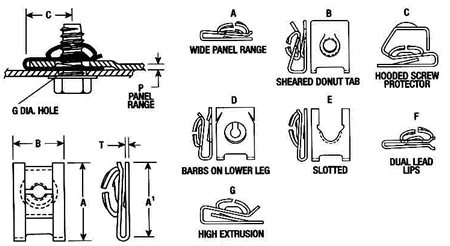

The Dimensions of the parts listed are envelope dimensions only. For complete design information, please request a blueprint from your Tinnerman Palnut representative or the Tinnerman Palnut Engineering Department.

Metric parts listed in italic

Material: All parts are Spring Steel, heat treated, unless otherwise specified. The only variations available are those shown with suffix letters in the part number.

  • SS - Stainless Steel
  • BE - Beryllium Copper
  • P - Phosphor Bronze
Specifications
Material Spring Steel
Screw Size 10AB
Material Thickness (s) 0.031
Panel Range .032-.064
Design Variation E|D
Length (A) 0.825
Width (b) 0.593
Length (A1) 0.825
Pre. Torq. 5lbs."
Ctr. Edge Max. (C) 0.5
Mnt. Hole Diameter (G) 0.312
