Tinnerman® Robotics Nut - Special Expansion-Type Fastener

[C71690-M63181]

Robotics Nut

On this page are examples of Expansion-Type Fasetners which have been developed to solve specific fastening problems. The expansion principle is the same, but forms vary to: plug a temporarily unused hole, provide vibration-resisting adjustment, fasten in wood, heavy gauge metal or odd-shaped panel holes. They illustrate Tinnerman's ability to help the manufacturer fasten his product better, faster and at a lower cost.

Perhaps one of these "Specials" will suit or suggest an answer to your particular fastening problems.

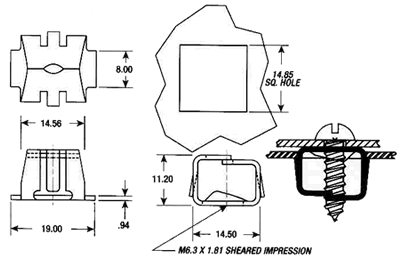

The Dimensions of the parts listed are envelope dimensions only. For complete design information, please contact us

Metric parts listed in italic

Material:
All parts are Spring Steel, heat treated, unless otherwise specified. The only variations available are those shown with suffix letters in the part number.

  • SS - Stainless Steel
  • BE - Beryllium Copper
  • P - Phosphor Bronze

Specifications
Screw Size M6.3x1.81
Panel Range (P) .900-1.200
Material Thickness (s) 0.94
Material Spring Steel
