Palnut® Multi Thread U-Nut

[LUGS142059]

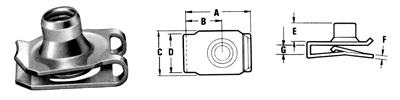

The dimensions of the parts listed are envelope dimensions only. For complete design information, please request a blueprint.

Specifications
Material	Spring Steel
Screw Size	1/4-20
Overall Width (C)	0.56
Panel Thickness Range	.025-.150
Length of Lower Foot (A)	0.92
Distance from Edge of part to ctr. dia. of hole (B)	0.54
Width of the Turning (D)	0.5
Height of the Neck (E)	0.24
Material Thickness (F)	0.035
Panel Range (G)	0.18
Panel Hole Dia. .015	0.375
