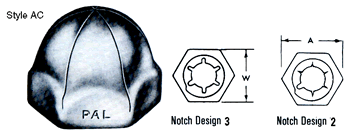

Palnut® Acorn Type Lock Nuts - Closed Top

[AC1024]

Palnut® Acorn Type Lock Nuts - Closed

The Dimensions of the following parts are envelope dimensions only. For complete design information, please request a blueprint from your Tinnerman Palnut representative or the Tinnerman Palnut Engineering Department.
Specifications
Thread No. 10-24
Hex Width (W) 3/8
Height (h) 0.324
Max. Across Corners (A) 0.433
Notch Design 2
Maximum Screw Penetration (C) 0.25
Recommended Torque 18
Average Resulting Tension 210
Weight Lbs./M Pieces 2.2
