Metric U-Type Fasteners-Wide Panel
(Prevailing Torque)

[LPGZ081914]

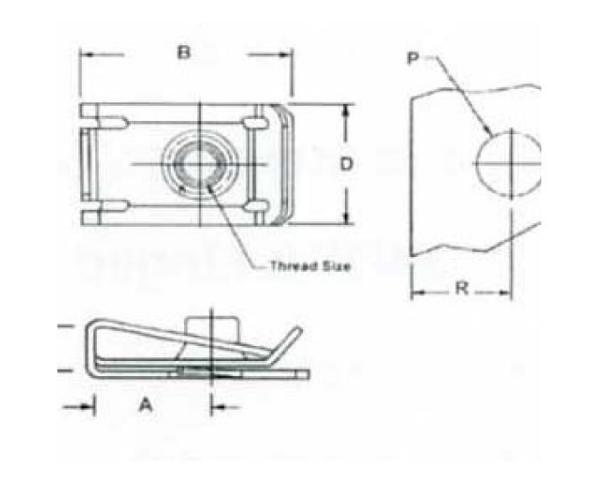

Specifications
Blank Filter	M8
Screw Size	M8x1.25
Panel Range	.5-4.0
Thread Pitch	1.25
Throat Depth (A)	14.5
Body Length (B)	27.7
Body Width (D)-Min.	19
Body Width (D)-Max	20
Stock Thick (E)	1.27
Panel Hole (P)	11.55
Ctr Hole to Edge (R)	13.5
Proof Load (kN)	32.94
