Tinnerman® Expansion Type Plastic Fasteners

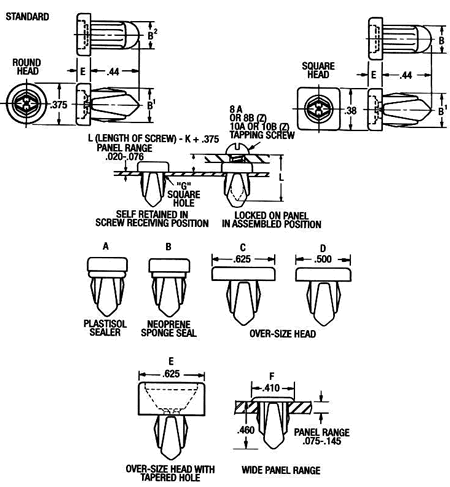

Expansion Nut

Expansion Nuts offer the designer a range of head types and diameters and the opportunity of providing a reusable thread form into blind box or channel sections where there is no access to attach a mating nut.

The Expansion Nut is simply pushed into the mating hole whereupon it expands and clicks into place, engagement of the mating screw then expands the nut further ensuring a secure vibration tight joint.

Nylon (AA)
Finish: Natural
Head Height 0.031
Head Type Square
Design Variation Std.
Diameter (B1) 0.305
Diameter (B2) 0.25
Square Mount Hole (G) .250-.281
