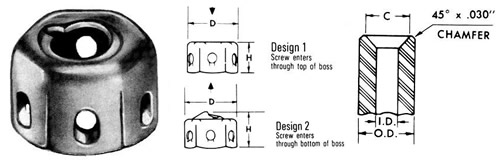

These distinctive fasteners with a single helical thread slip over hollow plastic bosses and prevent splitting when screws are driven. They also prevent cross-threading and resist screw pull-out. Yet screws may be removed without harming the fasteners or the boss. On-sert fasteners thus perform the same function as solid inserts but cost only about one-fifth as much. One type is used when screws enter the top of a boss while another type is used when screws enter the bottom of the boss.

Filter: Thread Size No. (See Note 1)4-406-20 & 6-186-328-18 & 8-158-3210-12 & 10-16 Design12 Height (In.)0.220.230.260.270.280.254 Diameter (D) (In.)0.2840.3280.3540.4220.5440.556 Weight (Lbs./M Pieces )11.31.41.51.81.933.5

	Product Name	Thread Size No. (See Note 1)	Design	Height (In.)	Diameter (D) (In.)	Weight (Lbs./M Pieces )
NR 440004	Palnut® On-Sert® Fasteners ( 1 product )	4-40	1	0.22	0.284	1
NR 620005	Palnut® On-Sert® Fasteners	6-20 & 6-18	1	0.23	0.354	1.5
NR 632005	Palnut® On-Sert® Fasteners	6-32	1	0.23	0.354	1.4
NR 818005	Palnut® On-Sert® Fasteners	8-18 & 8-15	1	0.23	0.354	1.4
NR 818045	Palnut® On-Sert® Fasteners	8-18 & 8-15	1	0.23	0.328	1.3
NR 818008	Palnut® On-Sert® Fasteners	8-18 & 8-15	1	0.26	0.544	3.5
NR 818085	Palnut® On-Sert® Fasteners	8-18 & 8-15	1	0.254	0.556	3
NR 818006	Palnut® On-Sert® Fasteners	8-18 & 8-15	1	0.22	0.422	1.9
NI 818006	Palnut® On-Sert® Fasteners	8-18 & 8-15	2	0.28	0.422	1.9
NR 832006	Palnut® On-Sert® Fasteners	8-32	1	0.22	0.422	1.9
NI 832006	Palnut® On-Sert® Fasteners	8-32	2	0.27	0.422	1.9
NR 101606	Palnut® On-Sert® Fasteners	10-12 & 10-16	1	0.23	0.422	1.8

Displaying 1 to 12 (of 12 products)
