Tinnerman® Wire Retainers and Tube Retainers
[C60387AD-13]

Wire and Tube Retainer

How to apply wire retainers
The "expander" fastener is simply snapped into a 1/4" diameter panel hole from the front side. Retaining tab on fastener permits preassembly in any position. The fastener's strap wraps around the wire bundle, etc. and the lock pin fastens by pressing to the bottom as shown. Entry of fastener enlarges the expander behind the panel for firm, positive retention.

How to apply the wire retainer’s adjustable straps:
Tinnerman Adjustable Ratchet Strap fasteners simplify and speed the securing of cables, wire bundles or irregular shapes. These fasteners feature an integral locking head with flexible pawl that engages the strap ratchet teeth for a fast and secure lock at the desired diameter. Strap of fastener is simply wrapped around bundle, inserted in the slot of the lock head then zipped tight against the bundle. That's it.

Quick Release - Forcing fastening tab backwards frees pawl fastening from ratchet.

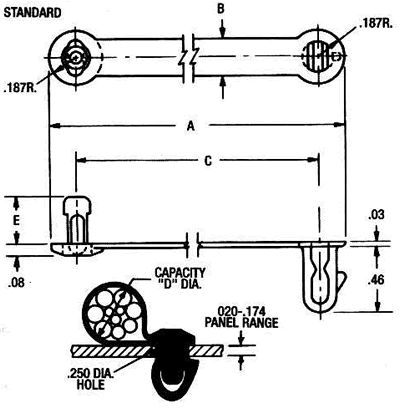

Specifications
Design Variation: Std.
Width (B): 0.26
Center to Center (C): 3.18
Overall Length (A): 3.555
Capacity Diameter (D): 0.812
Depth (E): 0.34
Quantity required:

Enter Part Number

Help Me Choose
