Home
»
Fasteners
»
Bolt Retainers
»
Standard Inch Bolt Retainers
» Palnut® Pushnut® Bolt Retainers
Click to enlarge
Palnut® Pushnut® Bolt Retainers
[PT164008]
HELP ME CHOOSE
Palnut® Pushnut Fasteners

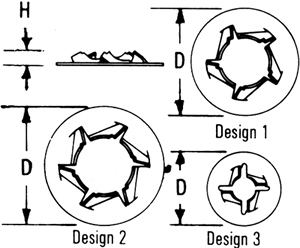

The Dimensions of the following parts are envelope dimensions only. For complete design information, please request a blueprint from your Tinnerman Palnut representative or the Tinnerman Palnut Engineering Department.
Specifications
Material
Spring Steel
Bolt Diameter
8
Design
3
Diameter (D)
.500
Height (h)
0.049
Material Thickness
0.01
Push-On Force Lbs. (Max.)
22
Holding Strength Lbs. (Min.)
50
Weight Lbs./M Pieces
0.5
0
Quantity:
Add to Quote
