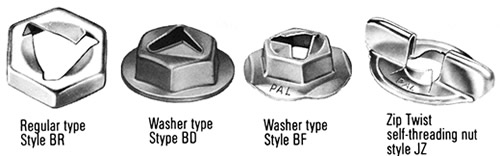

Palnut® Zip Twist Nuts

[BD 125009]

Palnut® Zip Twist Nuts

The dimensions listed are envelope dimensions only. For complete design information, please request a blueprint from your Tinnerman Palnut representative or the Tinnerman Palnut Engineering Department.
Specifications
Material Spring Steel
Height (H) (In.) 0.21
Weight Lbs./M 1.2
Steel Thickness (In.) 0.01
Stud Diameter 1/8 (.125)
Hex Width (W) (In.) 3/8
Washer Diameter (D) (In.) 9/16
