Palnut® Blind-Type Pushnut Fastener

[PB 094070]

Palnut® Blind Type Pushnut Fasteners

The dimensions listed are envelope dimensions only. For complete design information, please request a blueprint from your Tinnerman Palnut representative or the Tinnerman Palnut Engineering Department.

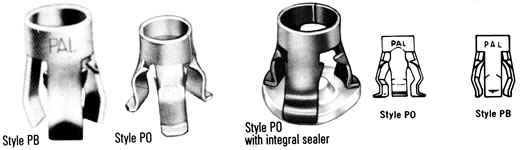

NOTE: With no recess around the stud base, the column headed PANEL THICK., PLUS RECESS DEPTH, represents the actual panel thickness. STYLE PO parts are also available with integral sealer of clear PVC.
Specifications
Material Spring Steel
Stud Diameter (In.) 3/32 (.094)
Panel Thickness Plus Recess Depth (See Note)(In.) .065-.075
Panel Hole Diameter (In.) .136/.142
Fastener Steel Thickness (In.) 0.011
Fastener Length (In.) 0.296
Fastener Weight Lbs./M 0.3
Push Onto Stud 5
Snap Assembly Into Panel 45
Remove Assembly from Panel 15
