Female Ball Stud

Female Ball Studs are used extensively in assemblies that require repeated disengagement.

Then used in panel fastenings there is typically a female socket joint or receptacle that accepts the ball stud when pushed into place.
There is no direct contact between the ball stud and the panel surface, wear is eliminated.

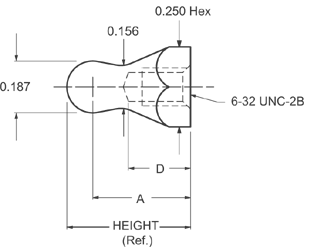

Female Ball Studs have internal threading with a 3/16" diameter head, a 1/4" hexagonal base and 6-32 threads.


Please see Ball Stud Clips for more details about this important matching clips

Basic Part Number Height (Ref.) Hex Width Height to Center of Ball ("A") (±.005) Depth (Ref "D") Thread Depth (Min) Panel Thickness (min/max) Body Diameter (minor/major)
P101-421-3B 0.421 0.250 0.328 0.185 0.115 0.025/0.051 0.187/0.156
P101-447-3B 0.447 0.250 0.354 0.211 0.141 0.052/0.078 0.187/0.156
P101-473-3B 0.473 0.250 0.380 0.237 0.167 0.079/0.105 0.187/0.156
P101-499-3B 0.499 0.250 0.406 0.263 0.193 0.106/0.132 0.187/0.156
P101-525-3B 0.525 0.250 0.432 0.289 0.219 0.133/0.160 0.187/0.156
P101-551-3B 0.551 0.250 0.458 0.315 0.245 0.161/0.187 0.187/0.156
P101-577-3B 0.577 0.250 0.484 0.341 0.271 0.188/0.214 0.187/0.156

Part Number Example:
(Basic Part Number-Material Code-Finish Code)
P101-421-3B
Female Ball Stud, 0.421" Height, Steel Clear Zinc
