Tinnerman® Cable, Wire, Rod & Tube Clips

[C54949-017]

Tinnerman® Clips offer the most efficient means of securing cable, wire and tubing safely away from danger areas. Made of high carbon Spring Steel heat-treated, they are one-piece and self-retaining in most cases, requiring only a mounting hole, flange end or panel edge for fast easy installation. Available in several standard designs for a wide range of line diameters and panel thicknesses, many have rolled edges as an added safeguard against fraying or chafing. They can also be supplied with a dipped
neoprene cushion.

Though quick and simple to install, they provide positive retention for reliable, trouble-free service.

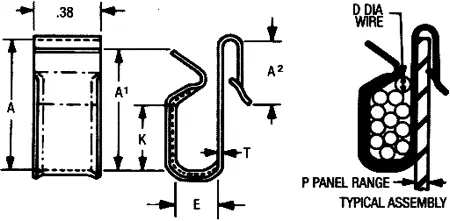

Specifications
Panel Range (P) .030-.050
Material Thickness (s) 0.017
Length (A) 0.5
Diameter (D) .120-.130 (9)
Length (A1) 0.74
Length (A2) 0.5
E 0.39
K 0.45
0
