Steel Structure Clips

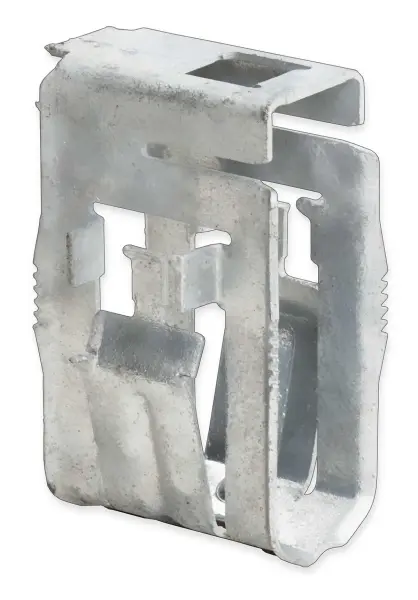

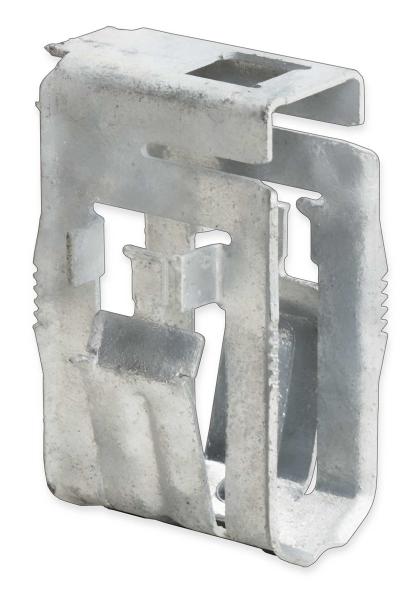

Clipped Fastening Solution providing an easy no tool attachment of the panel to steel or aluminium strut rail. Attaching solar assemblies quick, easy and secure. It allows for pre-assembly and the attachment of solar modules
 Technical Specifications
ARaymond Tinnerman Clip Module Fastener
Clip Category PowAR Snap® 90B suitable for Solar Panels
 Tinnerman Part Number 237390001
Clip Material SAE 1050-1065 Steel
Surface Treatment Hot dip galvanized 60 microns thick
Dimensions (mm) 39.2x63.3x34
Weight (g) 50
Mechanical Resistance UL recognized to UL 2703 section 21 Mechanical Load Testing
Corrosion Resistance UL recognized to UL 2703 section 19 Corrosive Atmosphere Tests
Grounding Continuity UL recognized to UL 2703 sections 17 ,18 and 22, Temperature Cycling
Testing, Humidity Testing and Bonding Conductor Testing, respectively
PV Module Specifications Module with frame thickness between 1.5mm and 2.2mm (dimension
A below) and minimum lip length of 16mm (dimension B below)
Rail Specifications Standard strut rails of 41x41mm or 41x62 mm or steel rails with punch
matching 41mm strut section
