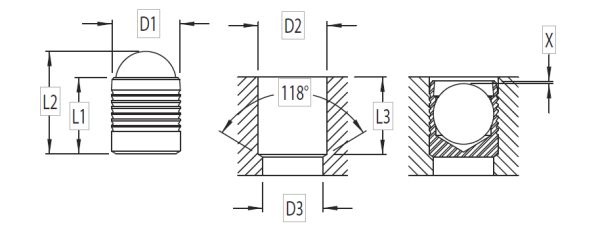

EIS-11 Metric Sealing Plugs
"1" Plug - Case Hardening Steel, Commercial Zinc "1" Ball - Bearing Steel, Heat Treated
(Dimensions in mm unless otherwise specified)
| D1 | L1 | L2 | D2 + 0.0 0 |
D3 max. | L3 min. | X +/- 0.2 |
EIS/PN | |||||||||||||
| 3.0 | 3.6 | 4.6 | 3.0 | 2.2 | 3.4 | 0.4 | EIS-11-030 | |||||||||||||
| 4.0 | 4.0 | 5.2 | 4.0 | 3.3 | 3.8 | 0.2 | EIS-11-040 | |||||||||||||
| 5.0 | 5.5 | 7.1 | 5.0 | 4.3 | 5.3 | 0.4 | EIS-11-050 | |||||||||||||
| 6.0 | 6.5 | 8.7 | 6.0 | 5.3 | 6.3 | 0.4 | EIS-11-060 | |||||||||||||
| 7.0 | 7.5 | 10.2 | 7.0 | 6.4 | 7.3 | 0.4 | EIS-11-070 | |||||||||||||
| 8.0 | 8.5 | 11.6 | 8.0 | 7.4 | 8.3 | 0.3 | EIS-11-080 | |||||||||||||
| 9.0 | 10.0 | 13.6 |
| |||||||||||||||||
