Palnut® Capped Washer Self Threaders

Click the product name or part number below to request a quote.

Non-Threaded Applications Palnut self-threading nuts and Pushnut® fasteners are respectively turned on and pushed on non-threaded projections, or studs. These capped washer type self-threaders eliminate the cost of cutting threads and the problems of cross-threading. They permit simpler, more economical and ultimately better designs. With these fasteners, there is no thread to find and no binding from dirt or damaged threads. Because of their prevailing torque, capped washer type self-thread fasteners provide excellent vibration resistance. Stud materials, which must be appreciably softer than that of the fasteners, include die cast zinc, aluminum, molded plastics, steel and brass.

Filter:

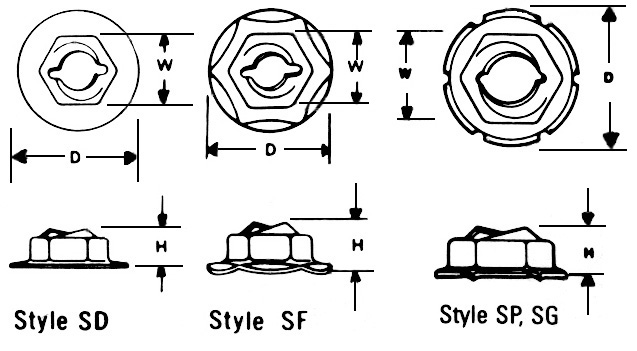

  Product Name  Steel Thickness (In.)  Hex Width (In.)  Washer Diameter (D) (In.)  Overall Height (H) (In.)  Weight Lbs./M
Palnut® Capped Washer Type - Self-Threaders
SD125007
Palnut® Capped Washer Type - Self-Threaders
0.017  41410  41471  0.186  1.2  Add to Quote

Palnut® Capped Washer Type - Self-Threaders
SD125085
Palnut® Capped Washer Type - Self-Threaders
0.017  41410  17/32  0.194  1.5  Add to Quote

Palnut® Capped Washer Type - Self-Threaders
SD188008
Palnut® Capped Washer Type - Self-Threaders
0.018  41341  41276  0.217  1.7  Add to Quote

Palnut® Capped Washer Type - Self-Threaders
SD188010
Palnut® Capped Washer Type - Self-Threaders
0.018  41341  41402  0.235  2.3  Add to Quote

Palnut® Capped Washer Type - Self-Threaders
SD250095
Palnut® Capped Washer Type - Self-Threaders
0.021  41471  19/32  0.232  2.5  Add to Quote

Palnut® Capped Washer Type - Self-Threaders
SD250011
Palnut® Capped Washer Type - Self-Threaders
0.021  41471  41594  0.247  3.1  Add to Quote

Palnut® Capped Washer Type - Self-Threaders
SF312014
Palnut® Capped Washer Type - Self-Threaders
0.023  0.495  0.875  0.309  5.2  Add to Quote

Palnut® Capped Washer Type - Self-Threaders
SG250095
Palnut® Capped Washer Type - Self-Threaders
0.021  0.432  0.594  0.219  2.2  Add to Quote

Palnut® Capped Washer Type - Self-Threaders
SP330012
Palnut® Capped Washer Type - Self-Threaders
0.023  41276  41337  0.29  Add to Quote

Palnut® Capped Washer Type - Self-Threaders
SP330016
Palnut® Capped Washer Type - Self-Threaders
0.023  41276  0.314  5.8  Add to Quote

Palnut® Capped Washer Type - Self-Threaders
SH188010
Palnut® Capped Washer Type - Self-Threaders
0.02  41341  41402  0.244  2.7  Add to Quote

Palnut® Capped Washer Type - Self-Threaders
SK125007
Palnut® Capped Washer Type - Self-Threaders
0.02  41410  41471  0.189  1.3  Add to Quote

Palnut® Capped Washer Type - Self-Threaders
SK188008
Palnut® Capped Washer Type - Self-Threaders
0.02  41341  41276  0.211  1.7  Add to Quote

Palnut® Capped Washer Type - Self-Threaders
SK188009
Palnut® Capped Washer Type - Self-Threaders
0.02  41341  41533  0.229  2.1  Add to Quote

Palnut® Capped Washer Type - Self-Threaders
SK188010
Palnut® Capped Washer Type - Self-Threaders
0.02  41341  41402  0.239  2.4  Add to Quote

Displaying 1 to 15 (of 15 products) Result Pages:  1
