Ball Stud Speed Clip

Click the product name or part number below to request a quote.

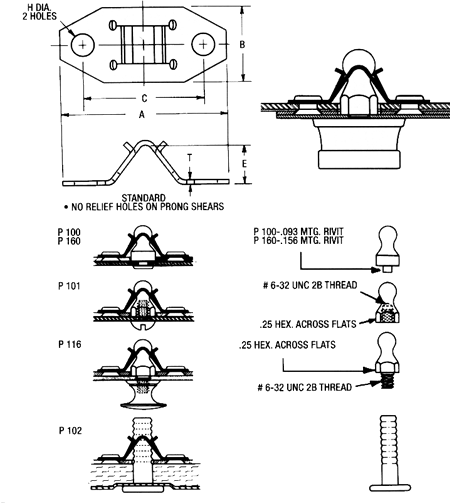

Ball-Stud Speed Clips were originally developed as spring catch fasteners on aircraft access doors, inspection panels, sealing strips and other similar assemblies requiring repeated disengagement. The versatility of these ball stud spring catch fasteners soon found them used extensively in other fields where they secured kitchen cabinet doors, removable toe plates, electronic cabinets, protective covers, etc. There is no direct contact between the stud and panel surfaces. This eliminates wear or chipping of painted or porcelained surfaces and resulting corrosion. When latched, the spring legs of the Ball Stud Speed Clip continually bear inward on the spherical or serrated studs, holding the latched unit snug against the panel.

Where adjustability or wide latching ranges are required, the serrated stud is used with the spring catch fastener. They are mainly used for attaching compressionable materials such as rubber, fabric, insulation, etc.

Pull-out tensions, depending on the material thickness of the Ball Stud Speed Clip and the stud used, can be provided from 3.5 pounds to 50-65 pounds. Various panel thicknesses are accommodated by varying the stud lengths.

Filter:
  Product Name  Hole Diameter (H)  Design Variation  Stud Type (Pull Out Tension)  Ball Serrated (Pull Out Tension)  Length (A)
C4893-012
Tinnerman® Ball-Stud Fasteners
0.105  Std.  3.5 lbs.  5 lbs.  0.97  Add to Quote

C4893-017
Tinnerman® Ball-Stud Fasteners
0.105  Std.  8 lbs.  9 lbs.  0.97  Add to Quote

C4893-022
Tinnerman® Ball-Stud Fasteners
0.105  Std.  12 lbs.  13 lbs.  0.97  Add to Quote

C4893-028
Tinnerman® Ball-Stud Fasteners
0.105  Std.  18 lbs.  24 lbs.  0.97  Add to Quote

C4893-031
Tinnerman® Ball-Stud Fasteners
0.105  Std.  30 lbs.  30 lbs.  0.97  Add to Quote

C1663-012
Tinnerman® Ball-Stud Fasteners
0.135  Std.  3.5 lbs.  5 lbs.  0.97  Add to Quote

C1663-017
Tinnerman® Ball-Stud Fasteners
0.135  Std.  8 lbs.  9 lbs.  0.97  Add to Quote

C1663-017SS
Tinnerman® Ball-Stud Fasteners
0.135  Std.  8 lbs.  9 lbs.  0.97  Add to Quote

C1663-022
Tinnerman® Ball-Stud Fasteners
0.135  Std.  12 lbs.  13 lbs.  0.97  Add to Quote

C1663-028
Tinnerman® Ball-Stud Fasteners
0.135  Std.  18 lbs.  24 lbs.  0.97  Add to Quote

C1663SS-028
Tinnerman® Ball-Stud Fasteners
0.135  Std.  18 lbs.  24 lbs.  0.97  Add to Quote

C1663-031
Tinnerman® Ball-Stud Fasteners
0.135  Std.  30 lbs.  30 lbs.  0.97  Add to Quote

C4883-012
Tinnerman® Ball-Stud Fasteners
0.145  Std.  3.5 lbs.  5 lbs.  0.97  Add to Quote

C4883-017
Tinnerman® Ball-Stud Fasteners
0.145  Std.  8 lbs.  9 lbs.  0.97  Add to Quote

C4883-022
Tinnerman® Ball-Stud Fasteners
0.145  Std.  12 lbs.  13 lbs.  0.97  Add to Quote

C4883-028
Tinnerman® Ball-Stud Fasteners
0.145  Std.  18 lbs.  24 lbs.  0.97  Add to Quote

C4883-031
Tinnerman® Ball-Stud Fasteners
0.145  Std.  30 lbs.  30 lbs.  0.97  Add to Quote

C40488-031
Tinnerman® Ball-Stud Fasteners
0.156  Std.  50-65 lbs.  40 lbs.  0.97  Add to Quote

Displaying 1 to 18 (of 18 products) Result Pages:  1
