Bushings and Plugs: Air Tools and Air Tool Jaws

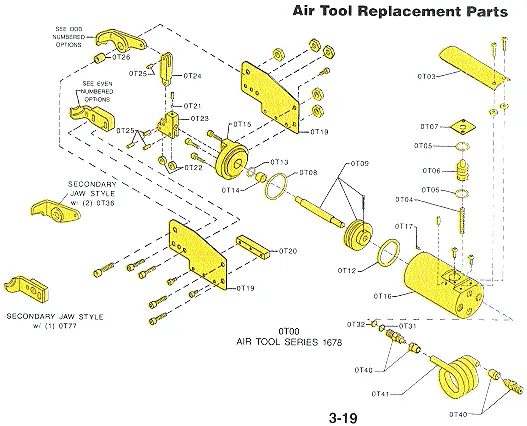

Heyco® Air Tool, Air Tools Jaws, & Replacement Parts


Heyco® Air Tool, Air Tools Jaws, & Replacement Parts
Chassis
Hole
Diameter
For Strain Relief Bushings Air Tool With
Jaws

Jaw
Part No.

in.        mm. Upper Lower
.375    9,5 2L-1,2M-4,2P-4,2P-5 0171 0T47 0T48
.437   11,1 3A-4 0173 0T49 0T50
.437   11,1 3L-1, 3P-4, 3P-5, 3W-1, 13-1 0175 0T51 0T52
.500   12,7 4A-6 0177 0T53 0T54
.500   12,7 4K-1, 4K-4, 4K-6, 4L-1, 4L-4, 4N-4, 4N-5, 4N-6,
4N-7, 4P-4, 5L-1, 5M-3, 5MN-3, 5N-4, 5N-5, 5N-7,
5P-4, 5P-7, 5P3-4,5S-1,6W-1,14-1,15-1
0179 0T55 0T56
.562   14,3 5K-4,5KN-4,5W-1,16-1 0181 0T59 0T60
.625   15,9 6K-5, 6L-1, 6N-4, 6N-7, 6N3-4, 6N3-5, 6N3-7,
6P-4, 6P-5, 6P-7, 6P2-5, 6P3-4, 6P3-7, 6P10,
6P30, 6S-1, 6S-2, 10-2, 11-2, 11K-2
0183 0T61 0T62
.750   19,0 7N-2 0185 0T63 0T64
.750   19,0 7P-2, 7P-7, 17-2 0187 0T65 0T66
.875   22,2 7K-2, 7L-2, 7W-2, 8L-1, 8P-2, 24-1, 31-2, 34-2 0189 0T67 0T68
.875   22,2 8N-1 0193 0T71 0T72
.375    9,5
   X      X
.625   15,9
300-1, 302-1 0191 0T69 0T70
.560    14,2
   X      X
.730   18,5
20-1, 20L-1, 30-1 0195 0T73 0T74
.750    19,0
   X      X
.875   22,2
23-1, 33-1 0197 0T75 0T76

Ordering Procedure for Air Tools:

  • On the tabular chart, locate the chassis hole diameter and strain relief bushing that you are using.
  • The required Air Tool is listed on the same line.
