Bushings and Plugs: Hole Plug

Heyco? Halogen -Free 94V-0 Hole Plugs


Heyco® Halogen -Free 94V-0 Hole Plugs Underwriters' LaboratoriesRecognized under the Components Program of Underwriters' Laboratories File #E-15331
Canadian Standards AssociationCertified by Canadian Standards Association File #LR-8919

  • Hole plugs are molded from a nylon material which, in the event of a fire, will not burn and will not produce toxic gases.  Hole plugs are formulated for sunlight resistance.   Other Heyco Products are available in this material-please consult Heyco.
  • Hole plug rated 94V-0 to 1/64 of an inch.
  • Hole plugs close unneeded chassis holes.
  • Convex, matte finish head tapers to a thin edge. (Except HFP-187)
  • Plugs come in eleven sizes for use in 3/16" (4,7mm) to 1-1/8" (28,6mm) diameter holes. Consult Heyco for larger sizes.
  • Hole plugs lock firmly into chassis up to 1/8" (3,2mm) thick.
  • Hole plug is quick and easy installation.
  • Plugs molded of type 6/6 nylon.  ASTM D-4066-PA181.
Hole Plugs are Heat Stabilized! Won't burn! Non-toxic! UV Resistant!
Swipe

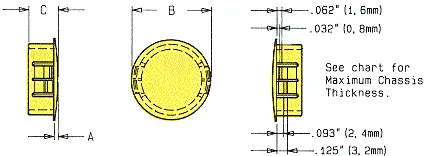

Chassis Dimensions Part No.   Part Dimensions
Maximum
Thickness
Mounting
Hole
Diameter
Black UL/CSA
Description
B
Head
Diameter
C
Overall
Height
A
Head
Thickness
in.       mm. in.       mm. in.      mm. in.      mm.
.062          1,6 .187            4,7 2593 HFP-187 .250          6,4 .234         5,9 .062        1,6
.062          1,6 .250            6,4 2606 HFP-250 .312          7,9 .312         7,9 .062        1,6
.062          1,6 .312           7,9 2616 HFP-312 .375          9,5 .312         7,9 .062         1,6
.125          3,2 .375           9,5 2623 HFP-375 .468         11,9 .406         7,9 .062        1,6
.125          3,2 .437          11,1 2636 HFP-437 .531         13,5 .406        10,3 .062        1,6
.125          3,2 .500         12,7 2646 HFP-500 .578         14,7 .406        10,3 .062        1,6
.125          3,2 .625         15,9  2666 HFP-625 .718         18,2 .406        10,3 .062        1,6
.125          3,2 .750          19,1 2686 HFP-750 .921         23,4 .406        10,3 .062        1,6
.125          3,2 .875          22,2 2706 HFP-875* 1.015      25,8 .453        11,5 .062        1,6
.125          3,2 1.000        25,4 2716 HFP-1000 1.203      30,6 .453        11,5 .062        1,6
.125          3,2 1.093        27,8
1.125        28,6
2729 HFP-1093* 1.218      30,9 .453        11,5 .062        1,6
Standard Color: Black. * UL File #E-51579
