Heyco® Metal Cord Grip Fittings
Heyco® Metal Cord Grip Fittings Underwriters' LaboratoriesRecognized under the Component Program of Underwriters' Laboratories File #E-51579
Canadian Standards AssociationCertified by Canadian Standards Association File #LR-18130


Zinc Die Cast, For Strain Relief on Flexible Cords

Swipe
Cable Dia. Range
We recommend using the smallest maximum diameter range strain relief Cord Grip that will fit your application.
Part No. UL/CSA
Description
NPT
Hub
Size

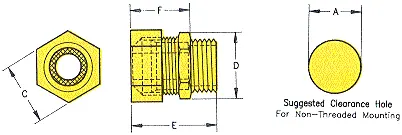

Part Dimensions
Min. Dia. Max Dia. A
Clearance Hole
C
Sealing
Nut O.D.
D
Body Nut O.D.
E
Overall Length
F Exposed Length
in   mm in   mm in   mm in   mm in   mm in   mm in   mm
.190   4,8 .250   6,3 9776 CG 11 1/2 .875   22,2 1.031   26,2 .938   23,8 1.312   33,3 .80   20,3
.260   6,6 .375   9,5 9777 CG 12
.375   9,5 .450   11,4 9778 CG 13
.440   11,2 .560   14,2 9779 CG 21 3/4 1.109   28,2 1.031   26,2 1.187   30,2 1.27   32,3 .87   22,1
.500   12,7 .650   16,5 9780 CG 22
.625   15,9 .725   18,4 9781 CG 23
*May vary slightly depending on cable diameter
  • We recommend using the smallest maximum diameter range strain relief Cord Grip that will fit your application.
  • Cast from zinc allow Zamac #3; ASTM B-86-83 SAE.
