Bushings and Plugs : Steel Cord Grips

Heyco® Metal Cord Grip Fittings

Steel Cord Grips Underwriters' LaboratoriesRecognized under Underwriters' Laboratories File #E-51579
Canadian Standards AssociationCertified by Canadian Standards Association File #LR-61799

Steel Cord Grips, for Strain Relief Flexible Cords

Swipe
Cable Dia. Range
We recommend using the smallest max. dia. that will still fit your application
Part No. UL/CSA
Description
NPT
Hub
Size

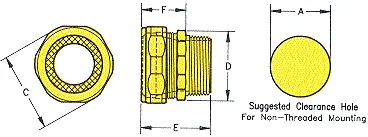

Part Dimensions
Min. Dia. Max Dia. A
Clearance Hole
C
Sealing
Nut O.D.
D
Body Nut O.D.
E
Overall Length
F Exposed Length
in   mm in   mm in   mm in   mm in   mm in   mm in   mm
.150   3,8 .250   6,3 3800 CG 50A-250 1/2 .875   22,2 1.031   26,2 .937   23,8 1.312   33,3 .812   20,3
.250   6,3 .350   8,9 3801 CG 50A-350
.350   8,9 .450   11,4 3802 CG 50A-450
.450   11,4 .560   14,2 3803 CG 50A-560
.560   14,2 .650   16,5 3804 CG 50A-650
.150   3,8 .250   6,3 3806 CG 75A-250 3/4 1.109   28,2 1.031   26,2 1.187   30,2
.250   6,3 .350   8,9 3807 CG 75A-350
.350   8,9 .450   11,4 3809 CG 75A-450
.450   11,4 .560   14,2 3810 CG 75A-560
.560   14,2 .650   16,5 3811 CG 75A-650
.650   16,5 .750   19,0 3812 CG 75B-750 3/4 1.109   28,2 1.250   31,7 1.187   30,2 1.562   39,7 1.031   26,2
.750   19,0 .850   21,6 3813 CG 75B-850
  • Exceed UL pullout test requirements.
  • Twelve sizes, with 1/2" to 3/4" NPT hubs, these strain reliefs cover a cable diameter range of .150"(3,8mm) to .850"(21,6mm)
  • Compact strain relief design allows Fittings to be consecutively ganged - no skipping knockouts - and occupy less "real estate."
  • Color-coded label system identifies the Cord Grips by wire range/grommet opening.
  • Neoprene rubber grommet ensures a permanent raintight seal around the cable.
  • Galvanized steel pressure ring prevents distortion of the grommet when the sealing nut is tightened.
  • Body and sealing nut are made of corrosion resistant machined steel. Zinc plated with special brighteners for a strain reliever with an attractive finish.
