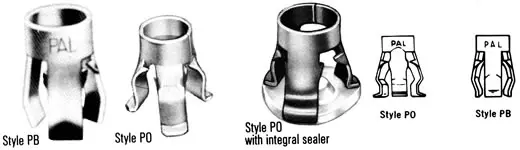

Palnut® Blind Type Pushnut Fasteners



Palnut® Blind Type Pushnut Fasteners

The dimensions listed are envelope dimensions only. For complete design information, please request a blueprint from your Tinnerman Palnut representative or the Tinnerman Palnut Engineering Department.
    Dimensions   Performance
    Panel Fastener   Pounds Force Required
  Part Number Thick. Plus
Recess Depth
(See Note)
(In.)
 Hole
Diameter
(In.) 		Steel
Thick.
(In.) 		Length
(In.) 		Weight
Lbs./M 		Stud
Diameter
(In.)* 		Push
Onto
Stud 		Snap
Assembly
Into
Panel 		Remove
Assembly
From
Panel
  PB 094070 .065-.075 .136/.142 .011 .296 0.3 3/32 (.094) 5 45 15
  PB 125070 .065-.075 .184-.190 .014 .312 0.4 1/8 (.125) 5 60 22
  PB 188070 .065-.075 .246-.252 .014 .344 0.6 3/16 (.188) 5 65 22
  PO 125040 .036-.044 .184-.190 .014 .290 0.4 1/8 (.125) 25 35 35
  PZ 001781 .035-.100 .184-.190 .014 .324 0.5 1/8 (.125) 15 60 22
  PZ 001842 .036-.044 .246-.252 .015 .325 0.7 3/16 (.188) 25 15 15

NOTE: With no recess around the stud base, the column headed PANEL THICK., PLUS RECESS DEPTH, represents the actual panel thickness. STYLE PO parts are also available with integral sealer of clear PVC.
