Home » Palnut® Acorn Type Pushnuts


Palnut® Acorn Type Pushnuts

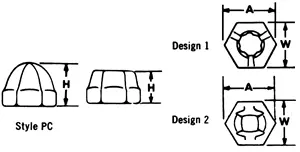

Palnut® Acorn Type Pushnuts Palnut® Acorn Type Pushnuts


The Dimensions of the following acorn type pushnuts are envelope dimensions only. For complete design information, please request a blueprint from your Tinnerman Palnut representative or the Tinnerman Palnut Engineering Department.
      Dimensions         Performance
                Rod Penet   Pounds
  Part Number Des. No.
 Steel
Thick.
(In.)		 Height
H (In.)		 Hex
Width
W (In.)		 Across
Corners
A Max. (In.)		 Weight
Lbs./M		 Min. (In.) Max. (In.) Stud
Diam. (In.)*		 Push-On
Force		 Minimum
Holding
Strength
  PC 120 2 .013 .261 5/16 .361 1.2 .13 .21 11 ga (.120) 40 234
  PC 148 2 .012 .295 11/32 .397 1.5 .13 .24 9 ga (.148) 30 239
  PC 156 2 .012 .295 11/32 .397 1.5 .13 .24 5/32(.156) 32 300
  PC 188006 1 .015 .324 3/8 .433 2.2 .16 .26 3/16(.188) 40 70
  PC 188 1 .021 .380 7/16 .505 3.8 .16 .30 3/16(.188) 50 185
  PC 250007 1 .017 .372 7/16 .505 3.2 .19 .28 1/4(.250) 45 120
  PK 188 1 .021 .310 7/16 .505 3.8 .16 -- 3/16(.188) 50 185
  PK 250 1 .024 .395 9/16 .650 7.2 .19 -- 1/4(.250) 45 220

*Recommended diameter tolerance of stud is ±.002" and ­.003". Surface hardness of stud must not exceed Rockwell 30T-78. Nickel-chrome plating or other hard finishes not recommended on steel studs for PK fasteners. Nickel-chrome plating on studs for PC fastenesr, and on diecast studs for PK fasteners, must not exceed .002".
