J-Type Fasteners

Tinnerman J-Type Speed Nut fasteners press easily into self-retained position over panel edges or in center-panel locations. They are ideally suited for blind assembly or hard-to-reach installation. Offer floating alignment to speed production and lessen rejections.

No specal tools, skills or equipment is required. Riveting, welding, clinching, staking and other secondary fastening devices are eliminated.

J-Type Speed Nuts can be applied after painting or porcelainizing panels eliminating the need for masking or retaping operations.

The J-Type Nut Retainer combines a spring steel retainer with a multiple-threaded nut to provide an ideal fastener for heavy duty applications requiring high torque tightening, low fastener profile, "float" for hole misalignment and blind assembly. They are easily snapped over panel edge or inserted into rectangular holes in central-panel locations. Floating alignment and retention are attained with extrusions in the retaining legs which snap into panel mounting holes allowing the fastener to shift or align, but not disengage. Applied after painting or porcelainizing, J-Type Nut Retainers eliminate the need for masking or retapping clogged threads.

How to apply J-Type Nut Retainers

Push into position with thumb, snapping extrusion into hole. Short leg of J-Type Speed Nuts allows complete visibility of clearance hole while nut is being positioned.

Place second panel in position and drive the screw. Access to opposite side is unnecessary. Flush mounting can be attained by embossing either panel.

J-Type Speed Nuts can also be installed in center-panel locations through a rectangular hole as shown above. They are ideal for blind application and fastening.

The dimensions listed on the following parts are envelope dimensions only. For complete design information, please request a blueprint from your Tinnermann Palnut representative or the Tinnerman Palnut Engineering Department.

Metric parts listed in italic

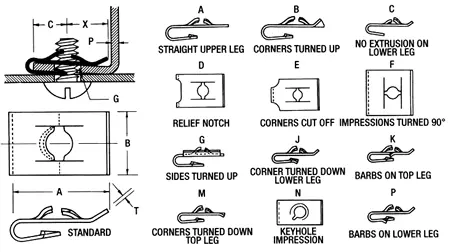

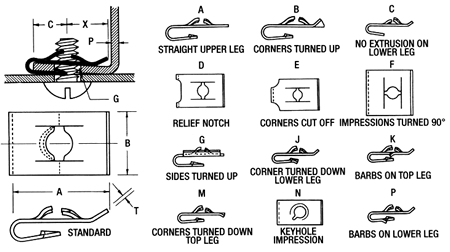

Part Number	Screw Size	Panel Range	Design Var.	A Length	B Width	C Max Ctr. Hole to Edge	X Ctr. Imp. To End	G Panel Hole Dia.	T Matl. Thick.
D8020-632	6-32	.042-.062	ADF	.470	.500	.218	.210	.187	.017
C71743-M7159	M4.7X1.59	2.50-2.50	N	14.10	12.70	7.13	6.40	8.53	.640
C8032SS-832	8-32	.045-.062	ADFN	.520	.500	.234	.250	.218	.017
C1132SS-022	8A	.051-064	ADF	.500	.250	.210	.220	.218	.022
C9248-8	8A or 8B	.080-.105	ACF	.790	.630	.500	.250	.218	.028
C8048-1024	10-24	.045-.062	AEN	.970	.380	.562	.350	.250	.022
C8049-10A	10A	.025-.040	ADFN	.580	.630	.250	.270	.250	.031
C14982-10	10A OR 10B	.168-.198	DF	.570	.630	.281	.270	.250	.031
C19383-1420	1/4-20	.040-.051	ADK	.910	.562	.375	.430	.312	.025
D98244-14	14A OR 14B	.100-.140	ACE	1.09	.630	.580	.450	.250	.037
C9731-14Z	14B	.028-.056	AE	.900	.560	.421	.400	.312	.037
C566-5610	5/16-10	.032-.064	AE	.900	.630	.500	.430	.437	.044

Material: All parts are Spring Steel, heat treated, unless otherwise specified. The only variations available are those shown with suffix letters in the part number.
