Cable Clips

Tinnerman® Clip fasteners offer the most efficient means of securing cable, wire and tubing safely away from danger areas. Made of high carbon, heat-treated Spring Steel, these fasteners are one-piece and self-retaining in most cases, requiring only a mounting hole, flange end or panel edge for fast easy installation. Our fasteners are available in several standard designs for a wide range of line diameters and panel thickness. Many fasteners have rolled edges as an added safeguard against fraying or chafing. They can also be supplied with a dipped neoprene cushion.

Though quick and simple to install, these fasteners provide positive retention for reliable, trouble-free service.

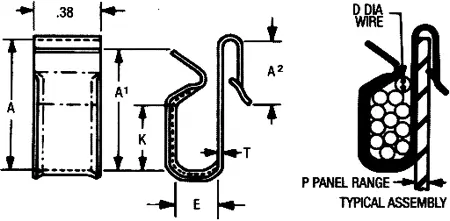

Cable Clips

Metric Parts Listed In Italic
  Part Number D P A A1 A2 E K T Matl.
Thick.
  D98281-017 .085-.095 (7) .054-.089 .695 .655 .420 .205 .300 .017
  D22042-017 .085-.095 (7) .115-.135 .700 .620 .410 .190 .290 .017
  C20213-017 .085-.095 (12) .025-.055 .830 .710 .400 .290 .430 .017
  C54949-017 .120-.130 (9) .030-.050 .500 .740 .500 .390 .450 .017
  D98274-017 .120-.130 (9) .031-.086 .520 .750 .490 .390 .450 .017
  C57788-051M 4.600-4.700 (1) 2.290-3.050 15.240 14.230 9.650 4.830 5.840 .510
  C23214-017 .245-.255 (1) .054-.066 .700 .620 .460 .190 .290 .017
  C54337-020 .270-.280 (1) .100-.120 .690 .630 .420 .230 .300 .020
  C26410-017 .338-.348 (1) .083-.093 .810 .810 .400 .280 .410 .017

Cable ClipsClips provided with a self-retaining "heel and toe", as illustrated below, are simply positioned in the mounting hole. Pressure at the back of the Clip forces it forward until the "heel" snaps into locked position. The cable wire, etc., is then installed for final assembly.

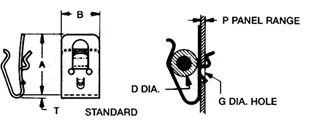

Cable Clips



Metric Parts Listed In Italic
  Part Number D Diameter P Panel
Range		 Design
Variation		 A Length B Width G Panel
Hole Dia.		 T Matl.
Thick.
  C20635SS-020 .085-.095 .040-.051 BD .760 .380 .281 .020
  C3966-020 .125-.140 .078-.095 BD .790 .380 .281 .020
  C23150-017 .175-.185 .048-.054 A .810 .500 .253 .017
  C3958-022 .187-.250 .025-.040 Std. .790 .500 .250 .022
  C57515-056M 5.725-6.250 1.370-1.680 Std. 20.00 12.70 6.350 .560
  C28461-022 .250-.312 .025-.035 B .790 .500 .250 .022
  C2832-025 .375-.406 .025-040 Std. .970 .630 .250 .025
  C43025-025 .432-.442 .038-.062 BE .740 .500 .250 .025

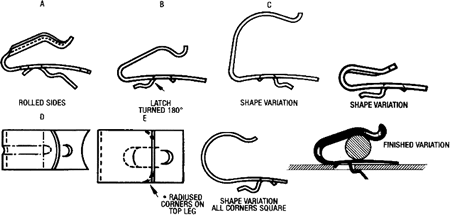

Material: All parts are Spring Steel, heat treated, unless otherwise specified. The only variations available are those shown with suffix letters in the part number.
  • SS - Stainless Steel
  • BE - Beryllium Copper
  • P - Phosphor Bronze
