| PolyGrip Multi-Grip Blind Rivets |
  |
|
Multi-grip blind rivets provide an effective and economical alternative to other, more costly methods of fastening, because one size handles the grip range capacity of up to 3 standard open end rivets. Multi-grip blind rivets can be used in any application requiring open end blind rivets, while reducing inventory requirements. Use multi-grip rivets as a standard open-end rivet... no special tool is needed.
Multi-Grip Klik-FastŪ Multi-Grip Blind Rivet has an extended grip range capacity that reduces inventory (fewer sizes required. Use Klik-FastŪ Multi-Grip Rivet as a standard open-end blind rivet. No special tools are required.
Wide Grip Range: A Single PolyGrip can replace up to three conventional blind rivets. Inventory and parts selection can be reduced.
Hole Filling: PolyGrip Rivets expand radially, providing complete hole fill. The result is tighter joints and added weather resistance.
Locked Mandrel Core: The positively retained mandrel
core is locked into the eyelet providing a rattle free, weather
tight fastener.
Large Blind Side Expansion: PolyGrip Rivets create a larger blind-side head than conventional blind rivets. Better support is provided when used in applications with thinner materials or oversized holes.
|

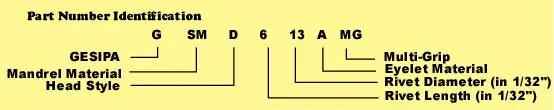

Material Selection: A=Aluminum S=Steel
*SS=Stainless Steel
Head Styles: D=Dome L= Large Flange C=Countersunk
*S=Small Dome (Snap) |
| ALUMINUM RIVET/STEEL MANDREL |
| Head Style |
Rivet Dia.
Nom. |
GESIPA
Part
Number |
Grip Range
(Inches) |
Hole Size
Drill No. |
Dimensions |
Min. Strength (lbs.) |
| D |
B |
A |
L |
Shear |
Tensile |
| Dome
|
1/8"
|
GSMD41-43APG |
.039-.197 |
.129-.136
#30 |
.126 |
.032 |
.256 |
.315 |
173 |
258 |
| GSMD42-44APG |
.059-.256 |
.374 |
| GSMD43-45APG |
.118-.315 |
.433 |
| 5/32"
|
GSMD51-54APG |
.039-.256 |
.161-.166
#20 |
.157 |
.039 |
.315 |
.394 |
263 |
405 |
| GSMD53-56APG |
.138-.375 |
.512 |
| GSMD55-58APG |
.276-.512 |
.669 |
| 3/16"
|
GSMD62-64APG |
.039-.256 |
.192-.197
#10 |
.189 |
.051 |
.374 |
.394 |
370 |
540 |
| GSMD65-67APG |
.177-.433 |
.591 |
| GSMD66-68APG |
.256-.512 |
.669 |
| GSMD69-612APG |
.433-.768 |
.984 |
| GSMD612-615APG |
.630-.945 |
1.181 |
| 1/4"
|
GSMD82-86APG |
.059-.354 |
.256-.275
"F" |
.252 |
.071 |
.512 |
.591 |
607 |
899 |
| GSMD84-89APG |
.236-.551 |
.787 |
| GSMD86-91APG |
.394-.709 |
.984 |
| Large
Flange |
1/8"
|
GSML41-43APG |
.039-.197 |
.129-.136
#30 |
.126 |
.032 |
.374 |
.315 |
173 |
258 |
| GSML42-44APG |
.059-.256 |
.374 |
| GSML43-45APG |
.118-.315 |
.433 |
| 5/32"
|
GSML51-54APG |
.039-.256 |
.161-.166
#20 |
.157 |
.051 |
.472 |
.394 |
263 |
405 |
| GSML53-56APG |
.138-.375 |
.512 |
| GSML55-58APG |
.276-.512 |
.669 |
| 3/16"
|
GSML62-64APG |
.039-.256 |
.192-.197
#10 |
.189 |
.051 |
.630 |
.394 |
370 |
570 |
| GSML65-67APG |
.177-.433 |
.591 |
| GSML66-68APG |
.256-.512 |
.669 |
| GSML69-612APG |
.433-.768 |
.984 |
| GSML612-615APG |
.630-.945 |
1.181 |
back to top
| ALUMINUM RIVET/STAINLESS STEEL MANDREL
|
| Head Style |
Rivet Dia.
Nom. |
GESIPA
Part
Number |
Grip Range
(Inches) |
Hole Size
Drill No. |
Dimensions |
Min. Strength (lbs.) |
| D |
B |
A |
L |
Shear |
Tensile |
| Dome
|
1/8"
|
GSSMD41-43APG |
.039-.197 |
.129-.136
#30 |
.126 |
.032 |
.256 |
.315 |
173 |
258 |
| GSSMD42-44APG |
.059-.256 |
.374 |
| GSSMD43-45APG |
.118-.315 |
.433 |
| 5/32"
|
GSSMD51-54APG |
.039-.256 |
.161-.166
#20 |
.157 |
.039 |
.315 |
.394 |
263 |
405 |
| GSSMD53-56APG |
.138-.375 |
.512 |
| GSSMD55-58APG |
.276-.512 |
.669 |
| 3/16"
|
GSSMD62-64APG |
.039-.256 |
.192-.197
#10 |
.189 |
.051 |
.374 |
.394 |
370 |
540 |
| GSSMD65-67APG |
.177-.433 |
.591 |
| GSSMD66-68APG |
.256-.512 |
.669 |
| GSSMD69-612APG |
.433-.768 |
.984 |
| GSSMD612-615APG |
.630-.945 |
1.181 |
| 1/4"
|
GSSMD82-86APG |
.059-.354 |
.256-.275
"F" |
.252 |
.071 |
.512 |
.591 |
607 |
899 |
| GSSMD84-89APG |
.236-.551 |
.787 |
| GSSMD86-91APG |
.394-.709 |
.984 |
| Large
Flange |
1/8"
|
GSSML41-43APG |
.039-.197 |
.129-.136
#30 |
.126 |
.032 |
.374 |
.315 |
173 |
258 |
| GSSML42-44APG |
.059-.256 |
.374 |
| GSSML43-45APG |
.118-.315 |
.433 |
| 5/32"
|
GSSML51-54APG |
.039-.256 |
.161-.166
#20 |
.157 |
.051 |
.472 |
.394 |
263 |
405 |
| GSSML53-56APG |
.138-.375 |
.512 |
| GSSML55-58APG |
.276-.512 |
.669 |
| 3/16"
|
GSSML62-64APG |
.039-.256 |
.192-.197
#10 |
.189 |
.051 |
.630 |
.394 |
370 |
570 |
| GSSML65-67APG |
.177-.433 |
.591 |
| GSSML66-68APG |
.256-.512 |
.669 |
| GSSML69-612APG |
.433-.768 |
.984 |
| GSSML612-615APG |
.630-.945 |
1.181 |
back to top
| STEEL RIVET/STEEL MANDREL |
| Head Style |
Rivet Dia.
Nom. |
GESIPA
Part
Number |
Grip Range
(Inches) |
Hole Size Drill No.
|
Dimensions |
Min. Strength (lbs.)
|
| D |
B |
A |
L |
Shear |
Tensile |
| Dome
|
1/8" |
GSMD41-43SPG |
.039-.197 |
.129-.136
#30 |
.126 |
.031 |
.256 |
.315 |
270 |
382 |
| 3/16" |
GSMD62-64SPG |
.039-.256 |
.192-.204
#10 |
.189 |
.051 |
.374 |
.394 |
584 |
719 |
Large
Flange |
3/16" |
GSML62-64SPG |
.039-.256 |
.192-.204
#10 |
.189 |
.051 |
.630 |
.394 |
584 |
719 |
back to top
| STAINLESS STEEL RIVET/STAINLESS STEEL
MANDREL |
| Head Style |
Rivet Dia.
Nom. |
GESIPA
Part
Number |
Grip Range
(Inches) |
Hole Size Drill No.
|
Dimensions |
Min. Strength (lbs.)
|
| D |
B |
A |
L |
Shear |
Tensile |
| Dome
|
1/8"
|
GSSMD41-43SSPG |
.020-.192 |
.129-.136
#30 |
.126 |
.039 |
.256 |
.315 |
326 |
517 |
| GSSMD42-44SSPG |
.059-.256 |
.374 |
| GSSMD43-45SSPG |
.118-.315 |
.433 |
| 5/32"
|
GSSMD51-54SSPG |
.020-.256 |
.161-.166
#20 |
.157 |
.039 |
.315 |
.394 |
596 |
820 |
| GSSMD53-55SSPG |
.139-.354 |
.512 |
| GSSMD55-57SSPG |
.276-.472 |
.669 |
back to top |
