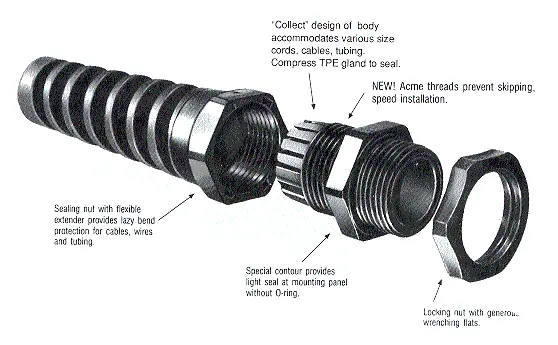

Heyco® Liquid Tight Pigtail Fittings For Flexible Cords
Heyco® Liquid Tight Pigtail Fittings For Flexible Cords US PATENT No. 5,405,172
Foreign Patents
Underwriters' Laboratories Listed under Underwriters' Laboratories File #E-51579
Components Program of Underwriters' LaboratoriesRecognized under the Components Program of Underwriters' Laboratories File #E-51579
Canadian Standards AssociationCSA Certified by Canadian Standards Association File #LR-93876.

PG HUBS-Install in either clearance or threaded holes

Part No.

A C D E F
Min. Dia. Max. Dia. Black Gray UL/CSA Clearance
Hole		 Max. O.A.
Length		 Thread Length Wrenching
Nut Thk.		 Wrenching
Flats
in.     mm. in.     mm. in.     mm. in.     mm. in.     mm. in.     mm. in.     mm.
.064    1,6 .210   5,3 3464 3465 FLEX RLTF 7 .492   12,5 2.44   62,0 .33       8,4 .22       5,6 .59     15,0
.114    2,9 .250   6,4 3237 3238 FLEX LTF 7 .492   12,5 2.44   62,0 .33       8,4 .22       5,6 .59     15,0
.069    1,8 .187   4,7 3466 3467 FLEX RLTF 9 .599   15,2 2.77   70,4 .34       8,6 .20       5,1 .75     19,1
.181    4,6 .312   7,9 3240 3241 FLEX LTF 9 .599   15,2 2.77   70,4 .34       8,6 .20       5,1 .75     19,1
.069   1,8 .260   6,6 3468 3469 FLEX RLTF 11 .733   18,6 3.44   87,4 .39       9,9 .20       5,1 .86     21,8
.230   5,8 .395 10,0 3243 3244 FLEX LTF 11 .733   18,6 3.44   87,4 .39       9,9 .20       5,1 .86     21,8
.170   4,3 .470 11,9 3246 3247 FLEX LTF 13.5* .804   20,4 3.88   98,6 .41    10,4 .20      5,1 .95     24,1
.230   5,8 .546 13,9 3249 3250 FLEX LTF 16* .886   22,5 4.36 110,7 .45    11,4 .23      5,8 1.05   26,7
.250   6,4 .485 12,3 3478 3479 FLEX RLTF 21 1.115 28,3 5.03 127,8 .52    13,2 .23      5,8 1.30   33,0
.450  11,4 .709 18,0 3245 3248 FLEX LTF 21* 1.115 28,3 5.03 127,8 .52    13,2 .23      5,8 1.30   33,0

Standard nylon fastener Colors:  Black or Gray.
*  Underwriters' LaboratoriesListed Under Underwriters' Laboratories
  • NEW! Acme threads on nylon fastener body prevent skipping; speed installation.
  • "PG" hub threads are steel conduit threads per DIN 40430. For DIN 40430 see page 1-20.
  • Flexible "Pigtail" extender prevents sharp bends and extends cable life.
  • Ten nylon fastener sizes for cable, tubing, etc. with diameters ranging from .064"(1.6mm) to .709"(18,0mm).
  • All nylon construction with TPE gland resists salt water, weak acids, gasoline, alcohol, oil, grease and common solvents.
  • Working temperatures:-22°F (-30°C) to 212°F (100°C). For short periods to 302°F (150°C).
  • Protection class IP 68 per DIN 40050 up to 70 psi (5 bar) water pressure.
  • Nylon fastener is suitable for NEMA type 4 and 6 enclosures.
  • Locknuts are included.
  • We recommend using the smallest maximum diameter nylon fastener that will fit your application.
    Click here to see our guide on choosing the best LTF for your application.
    Click here for our Detailed Installation Instructions.
    Click here for Recommended Torque Chart.
