Dome Plugs & Snap Bushings


Dome PlugUnderwriters' LaboratoriesRecognized under the Components Program of Underwriters' Laboratories File #E-15331
Canadian Standards AssociationCertified by Canadian Standards Association File #LR-8919
  • Snap bushings convert raw-edged holes to smooth, neat, nylon insulated holes.
  • Locking nylon fingers "snap" into holes with fingertip pressure.
  • Snap bushings withstand a push back force of 35 pounds.
  • Snap bushings come in four sizes for use in 16,0mm (.630") to 32,0mm (1.260") diameter holes.   For other metric sizes, consult Heyco.
  • Snap bushings lock firmly into chassis up to 2,5mm (.098") thick.
  • Snap bushings are molded of type 6/6 nylon.  ASTM D-4066; flammability classification 94V-2; temperature index 125°C.
Chassis Dimensions Part No.   Part Dimensions
Maximum
Thickness
Mounting
Hole
Diameter
Black White UL/CSA
Description
B
Head
Diameter
C
Overall
Height
A
Head
Thickness
in.     mm. in.     mm. in.    mm. in.      mm.
.098      2,5 .630    16,0 2128 2130 MDP 16 .728     18,5 .406     10,3 .062     1,6
.098      2,5 .787    20,0 2131 2132 MDP 20 .890     22,6 .406     10,3 .062     1,6
.098      2,5 .984    25,0 2133 2134 MDP 25 1.173   29,8 .453     11,5 .062     1,6
.098      2,5 1.260  32,0 2135 2136 MDP 32 1.388   35,3 .453     11,5 .062     1,6
Standard Color: Black.  White and others available at extra charge (only in large quantities)

Snap Bushing
Heyco® Metric Snap Bushings

Heyco® Metric Snap Bushings Underwriters' LaboratoriesRecognized under the Components Program of Underwriters' Laboratories File #E-15331
Canadian Standards AssociationCertified by Canadian Standards Association File #LR-8919
  • Converts raw-edged holes to smooth, neat, nylon insulated holes.
  • Locking nylon fingers "snap" into holes with fingertip pressure.
  • Withstands a push back force of 35 pounds.
  • Four sizes for use in 16,0mm (.630") to 32,0mm (1.260") diameter holes.   For other metric sizes, consult Heyco.
  • Lock firmly into chassis up to 2,5mm (.098") thick.
  • Molded of type 6/6 nylon.  ASTM D-4066; flammability classification 94V-2; temperature index 125°C.

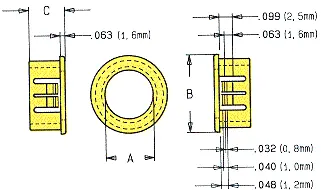

Chassis Dimensions Part No.   Part Dimensions
Maximum
Thickness
Mounting
Hole
Diameter
Black White UL/CSA
Description
A
Inside
Diameter
B
Head
Diameter
C
Overall
Height
in.     mm. in.     mm. in.    mm. in.     mm.
.098      2,5 .630    16,0 2142 2143 MSB 16-12 .472     12,0 .728     18,5 .406    10,3
.098      2,5 .787    20,0 2144 2145 MSB 20-16 .630     16,0 .890     22,6 .406    10,3
.098      2,5 .984    25,0 2146 2147 MSB 25-19 .748     19,0 1.094   27,8 .453    11,5
.098      2,5 1.260  32,0 2148 2149 MSB 32-26 1.023   26,0 1.358   34,5 .453    11,5
Standard Color: Black.  White and others available at extra charge (only in large quantities).

Heyco® Metric Snap Bushings
