Heyco Shorty Bushings

Heyco Shorty Bushings Underwriters' Laboratories Recognized under the Component Program of Underwriters' Laboratories File #E-15331.
Canadian Standards Association Certified by the Canadian Standards Association File #LR-8919
  • Insulating feed-thru nylon bushings for limited internal clearance (minimum 1/8" or 3,2mm) applications.
  • Bushings insulate and isolate electric or telecommunications cables as well as low RPM shafts and push-pull rods.
  • Locking fingers hold securely after only fingertip pressure "snap-in" installation.
  • Molded of type 6/6 nylon.  ASTM D-4066; flammability classification 94V-2; temperature index 125°C.  Maximum temperature on the bushing shall not exceed 105°C.
  • Labkit No. 2 (part #2999)
    A convenient assortment of 258 Snap bushings and Shorty Bushings for prototype and laboratory use.  Lid card indicates mounting hole sizes and bushing IDs. See page 4-26 for more details.
Chassis Dimensions Part No.   Part Dimensions
Maximum
Thickness		 Mounting
Hole
Diameter		 Black White UL/CSA
Description		 A
Inside
Diameter		 B
Head
Diameter		 C
Overall
Height
in.        mm. in.        mm. in.        mm. in.        mm. in.        mm.
.062     1,6 .187     4,7 2800 2801 B 187-125 .125      3,2 .250      6,3 .234     6,0
.062     1,6 .218     5,5 2859 2860 B 218-125 .125      3,2 .281      7,1 .234     6,0
.062     1,6 .281     7,1 2853 2854 B 281-218 .218      5,5 .343      8,7 .234     6,0
.062     1,6 .312     7,9 2810 2811 B 312-250 .250      6,4 .375      9,5 .234     6,0
.062     1,6 .343     8,7 2856 2857 B 343-218 .218      5,5 .406     10,3 .250      6,3
.062     1,6 .375     9,5 2803 2804 B 375-250 .250      6,4 .437     11,1 .250      6,3
.062     1,6 .406    10,3 2806 2807 B 406-281 .281      7,1 .468     11,9 .250      6,3
.062     1,6 .437    11,1 2813 2814 B 437-312 .312      7,9 .500     12,7 .250      6,3
.062     1,6 .468    11,9 2817 2818 B 468-343 .343      8,7 .531     13,5 .250      6,3
.062     1,6 .500    12,7 2820 2821 B 500-375 .375      9,5 .562     14,3 .250      6,3
.062     1,6 .531    13,5 2824 2825 B 531-406 .406    10,3 .593     15,1 .250      6,3
.062     1,6 .593    15,1 2833 2834 B 593-468 .468    11,9 .656     16,7 .250      6,3
.062     1,6 .625   15,9 2827 2828 B 625-500 .500    12,7 .703     17,9 .250      6,3
.062     1,6 .750   19,1 2836 2837 B 750-625 .625    15,9 .828     21,0 .250      6,3
.062     1,6 .781   19,8 2844 2845 B 781-625 .625    15,9 .859     21,8 .250      6,3
.062     1,6 .875   22,2 2850 2851 B 875-750 .750    19,0 .937     23,8 .250      6,3
Standard Bushing Colors:  Black or White.  Others available at extra charges (only in large quantities)

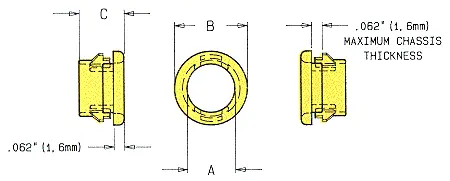

Heyco Shorty Bushings
Heyco Shorty Universal Bushings

Underwriters' Laboratories Recognized under the Component Program of Underwriters' Laboratories File #E-15331.
Canadian Standards Association Certified by the Canadian Standards Association File #LR-8919

  • Bushing absorbs vibration; cushions and insulates cables, tubing, hoses or shafts with limited internal clearance.
  • Fingertip pressure snap-locks the bushing into its mounting hole.
  • Flexible "shutters" adjusts to accommodate and support any shape from .125" (3,2mm) to a maximum diameter of .560" (14,2mm)
Chassis Dimensions Part No.   Part Dimensions
Maximum Thickness Mounting
Hole Diameter		 Black UL/CSA
Description		 A
Maximum
Inside
Diameter		 B
Head
Diameter		 C
Overall
Height
in.       mm. in.       mm. in.       mm. in.       mm. in.       mm.
.062       1,6 .625       15,9 2861 SUB 625 .437       11,1 .729       18,5 .250       6,3
.062       1,6 .750       19,1 2862 SUB 750 .500       12,7 .859       21,8 .250       6,3
.062       1,6 .875       22,2 2863 SUB 875 .560       14,2 .937       23,8 .250       6,3
Standard Bushing Color: Black. Others available at extra charges(only in large quantities)

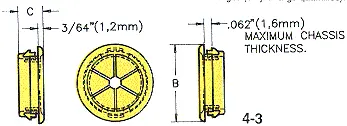

Heyco Shorty Universal Bushings
