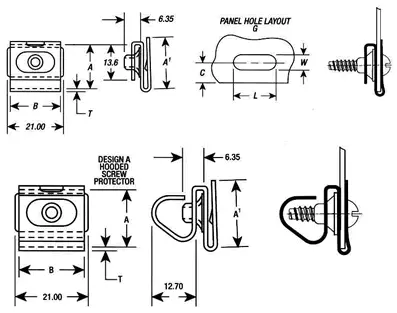

Self-Aligning U-Type Fasteners - Type I

Self-Aligning U-Type Fasteners - Type I

Self-Aligning U-Type Fasteners - Type I



Self-Align U-Type Fasteners
overcome panel aligning problems on fast moving assembly lines. they snap quickly into position on metal or plastic panels, etc., and instantly align with power driven screws. No drift pins or forced alignment is necessary, eliminating the delays they entail and the risks of hole or panel damage and expensive scrap loss.

One-piece self-retaining, they combine stamped fastener convenience and economy with multiple thread strength and reliability. The S-shaped spring steel retainer has generous elongated mounting holes that permit up to 1/4" The trapped sliding member incorporates a patented extruded configuration that provides high torque installation and withstands unusually high clamp loads. Prevailing torque on the screw is inherent in the design. The screw will not loosen due to vibration, panel set or migration.


Self-Aligning U-Type Fasteners - Type I The dimensions of the parts listed are envelope dimension only. For complete design information, please contact us.

Metric parts listed in italic


Swipe
  Part Number Screw Size P Panel
Range
Design
Var.
A Length A1 Length B Width C Max.
Hole to Edge
G Panel
Hole Dia.
T Matl. Thick.
  D98511-M42141 M4.2 .800-1.35 B 17.50 18.20 19.05 9.50 19.00x7.00 .710
  D98357-8AB M4.2x1.41 .800-1.35 Std. 17.50 21.60 19.05 9.50 19.00x7.00 .710
  D98377-M42141 M4.2x1.41 .800-1.35 A 17.50 19.60 19.05 9.50 19.00x7.00 .710
  D98657-8AB M4.2x1.41 1.50-3.00 A 18.90 19.06 19.05 9.50 19.00x7.00 .710

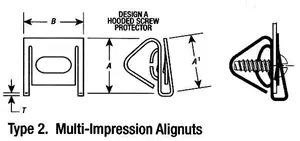

Self-Aligning U-Type Fasteners - Type II





Self-Aligning U-Type Fasteners - Type II Self-Aligning U-Type Fasteners - Type II

Swipe
  Part Number Screw Size P Panel
Range
Design Var. A Length A1 Length B Width C Max. Hole to Edge G Panel Hole Dia. T Matl. Thick.
  D98364-8Z M4.2 .500-1.80 A 20.40 21.50 21.40 9.50 15.90x5.60 .790
  D98348-8Z M4.2 1.27-3.30 Std. 21.00 22.50 23.80 9.50 15.90x5.60 .790
  D98436-8Z 8B .020-.071 Std. .795 .835 .843 .374 .626x.220 .031
  D98507-8Z 8B .020-.071 Std. .795 .835 .937 .374 .626x.220 .031
  D98437-8Z 8B .050-.130 Std. .787 .847 .937 .276 .626x.295 .031
  D98612-8Z 8B .079-.150 Std. .787 .847 .937 .276 .626x.295 .031
  D98588-8Z 8B or 8A .050 Std. .709 .709 1.094 .374 .626x.220 .031
  D98552-8Z 8B or 8A .079-.150 Std. .776 .835 .843 .315 .866x.276 .031

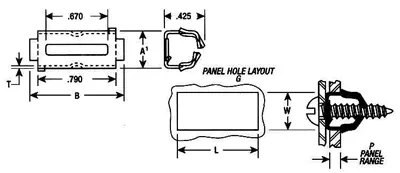

Self-Aligning U-Type Fasteners - Type III


Self-Aligning U-Type Fasteners - Type IIIMaterial:
All parts are Spring Steel, heat treated, unless otherwise specified. The onlyvariations available are those shown with suffix letters in the part number.
  • SS - Stainless Steel
  • BE - Beryllium Copper
  • P - Phosphor Bronze

Swipe
  Part Number Screw Size P Panel
Range
Design Var. A Length A1 Length B Width C Max.
Hole to Edge
G Panel
Hole Dia.
T Matl.
Thick.
  D98772-.071M M4.2x1.41 .700-1.20 Std. -- 9.95 25.50 -- 20.85x10.35 .710
  D71444-8 8AB .100-.125 Std. -- .390 1.004 -- .821x.407 .028
