Expansion Nut

Expansion Nut

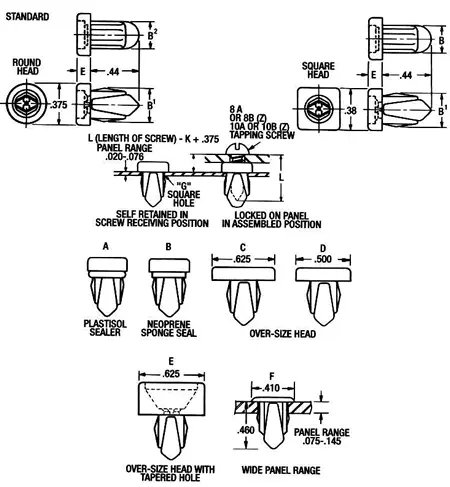

Expansion Nuts offer the designer a range of head types and diameters and the opportunity of providing a reusable thread form into blind box or channel sections where there is no access to attach a mating nut.

The Expansion Nut is simply pushed into the mating hole whereupon it expands and clicks into place, engagement of the mating screw then expands the nut further ensuring a secure vibration tight joint.

Expansion Nut

Expansion Nut

Swipe
  Part Number E Head
Height
Head Type Design
Variation
B1 B2 G Square
Mnt. Hole
  C60053AA-031 .031 Square Std. .305 .250 .250-.281
  C61278AA-031 .031 Square F .290 .265 .265-.281
  C60053AA-062 .062 Square Std. .305 .250 .250-.281
  C61278AA-100 .100 Square F .290 .265 .265-.281
  C61374AA-250 .250 Round E .305 .250 .250-.281
Material: Nylon (AA)
Finish: Natural
