Tinnerman® Self-Anchoring Nut Retainers offer the same advantages as the preceding Nut Retainers; i.e., high strength, easy to apply for blind fastening locations, self-retention, etc. In addition, this variety provides a unique feature which firmly locks the fastener in the panel, distributing the driving torque through the surround panel area. This is accomplished with a T-shaped capative nut, cleverly devised locking tabs, and mounting legs. It cannot be accidentally dislodged even with excessively rough handling. However, should thread damage occur due to cross-threading or over torquing, it can be deliberately removed without damage to panel or finish. Self-Anchoring Nut Retainers are recommended for applications where fasteners with less permanent retention are apt to be lost due to stacking butting or rough handling of panels on the production line.

How to apply Self- Anchoring Nut Retainers:

Self-Anchoring Nut Retainers are set into the panel-mounting hole after the finishing process. The spring steel mounting legs temporarily hold the fastener in place as the T-nut is pressed into locked position in the panel. As the T-nut expands the mounting legs around the panel, it forces past spring tab provided in the retainer which snap back locking the fastener firmly, permanently in the panel.




Self-Anchoring Nut Retainers

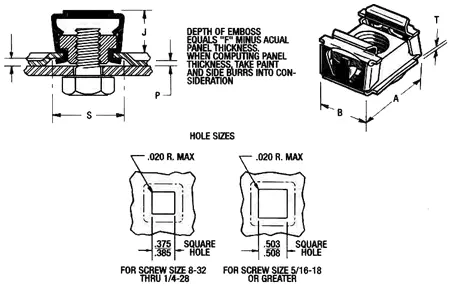

The Dimensions of the parts listed are envelope dimensions only. For complete design information, please contact us

Metric parts listed in italic

Swipe
  Part Number Screw Size P Panel Range F S Emboss
Sq. (min)
A Length B Width J T Material
Thickness
  D30802-1032 10-32 .093-.126 .180 .620 .525 .460 .300 .017
  D30800-1420 1/4-20 .025-.063 .110 .620 .525 .530 .300 .017
  D30804-5618 5/16-18 .057-092 .140 .690 .718 .600 .420 .020
Material: All parts are Spring Steel, heat treated, unless otherwise specified. The only variations
available are those shown with suffix letters in th part number.
  • SS - Stainless Steel
  • BE - Beryllium Copper
  • P - Phosphor Bronze
