Palnut® Wing Type Lock Nuts

Palnut® Wing Type Lock Nuts





Palnut® Wing Type Lock Nuts

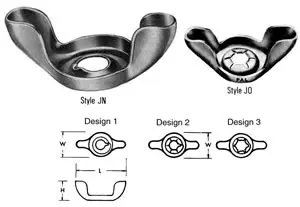

The Dimensions of the following parts are envelope dimensions only. For complete design information,please request a blueprint from your Tinnerman Palnut representative or the Tinnerman Palnut Engineering Department.

Swipe
  Part Number Thread Size H Wing
Height
(In.)		 L Wing
Length
(In.)		 W Width
(In.)		 Notch
Design		 Finger
Rec.
Torque
(In. Lbs.)		 Finger
Avg.
Resulting
Tension
(In. Lbs.)		 Wrench
Rec.
Torque
(In. Lbs.)		 Wrench
Avg.
Resulting
Torque
(In. Lbs.)		 Wrench
Weight
(Lbs./M)
Pieces
  JO 632 6-32 .344 3/4 .344 2 6 80 9 130 1.6
  JO 832 8-32 .359 13/16 .400 2 9 100 12 150 2.0
  JN 1024 10-24 .375 7/8 .432 1 11 120 20 280 2.7
  JO 1024 10-24 .375 7/8 .432 2 11 120 20 210 2.4
  JO 1420 1/4-20 .422 1-1/16 .524 3 15 150 38 350 4.2
  JZ 001731 1/4-20 .469 1.297 .617 1 17 75 55 400 6.1
  JN 51618 5/16-18 .469 1-1/4 .617 1 21 180 70 650 6.1
