Twin-Type Fasteners

Twin-Type Fasteners

Twin-Type Fasteners

The dimensions of the parts listed are envelope dimensions only. For complete design information, please contact us.

Twin-Type Speed Nut Fasteners offer tremendous advantages over individual threaded nuts, lock and spanner washers on assemblies which have fastening locations in pairs. They are faster and easier to apply with only a single fastener to handle where four to six pieces are ordinarily required. Once the screws are started, the Speed Nut cannot turn, thereby eliminating the need for a wrench. This leaves both hands free to drive the screws into a properly locked position. Twin types are available in a wide range of screw sizes and center-to-center dimensions.

How to apply Twin-Type Speed Nut Fasteners

The Twin-Type is held in screw-receiving position and the screws are started by hand. No wrench is needed to hold the Speed Nut while the screws are driven tight. A center clearance hole is provided on some Twin-Types to allow the fastener to be riveted in screw-receiving position for blind location fastening.

Metric parts listed in italic

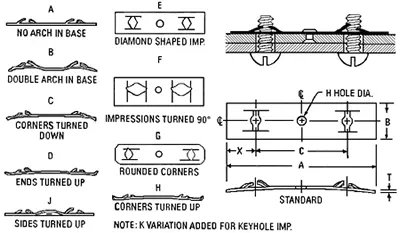

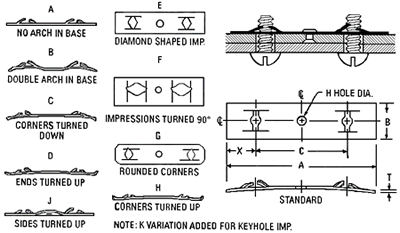

Twin-Type Fasteners



Material: All parts are spring Steel, heat treated, unless otherwise specified. The only variations available are those shown with suffix letters in the part number.


  • SS - Stainless SteelBE - Beryllium CopperP - Phosphor Bronze
Swipe
  Part Number C Center
to Center
Screw
Size
Design
Variation
A
Length
B
Width
X Center
to End
H Hole
Dia.
T Matl.
Thick.
  C53777-256 .188 2-56 AK .500 .187 .156 -- .012
  C6704-440 .380 4-40 Std. .750 .310 .190 -- .012
  C6065-632 .500 6-32 D 1.130 .380 .310 .105 .017
  C71262-M305 24.64 M3X.5 AG 35.58 7.920 5.97 -- .250
  C385-1420 1.50 1/4-20 B 2.38 .500 .440 -- .025
