Flat-Type Washers - Regular



Flat-Type Washers - Regular


The Flat-Type Speed Nut is the basic design from which thousands of Speed Nut Brand Fasteners have been developed.

Flat-Type Speed Nut Fasteners are one-piece, self-locking, heat-treated, spring-steel fasteners that replace threaded nuts, lockwashers and spanner washers. On many applications, they eliminate time consuming assembly operations. Fast and easy to apply, Flat Type Speed Nut Fasteners provide maximum holding power at minimum cost per fastener. They never shake loose from vibration, yet can be easily loosened when desired, without worry about rust-frozen screw threads.



How to apply Flat-Type Speed Nuts

Hold Flat Type Speed Nut Fastener in desired position with prongs pointing outward, toward fingers. Start screw through Speed Nut impression.

Press Speed Nut firmly against panel and drive screw. Finger pressure is sufficient to prevent Flat Type Speed Nut Fastener turning as screw is driven.

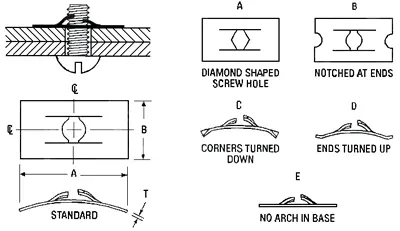

Flat-Type Washers - Regular

The Dimensions of the following parts are envelope dimensions only. For complete design information, please contact us.

Metric Parts listed in italic
Swipe
  Part Number Screw Size Design Variation A Length B Width T Material Thickness
  C102-256 2-56 Std. .380 .220 .010
  C7000-4 4A or 4B Std. .380 .250 .022
  C1181-632 6-32 D .510 .310 .017
  C8000-6 6A or 6B Std. .870 .440 .025
  C7000-832 8-32 Std. .500 .310 .017
  C8002-8 8A or 8B Std. .870 .470 .028
  C1150-1024 10-24 B .730 .440 .022
  C7000-10 10A or 10B Std. .750 .500 .031
  C8613-020 1/4-20 C 1.00 .560 .020
  C7000-14 14A or 14B Std. .880 .560 .037
  C601-5618 5/16-18 Std. .980 .630 .028
  C1297-3816 3/8-16 A 1.00 .750 .034
  D7516-017* 1/2-13 A 1.22 .880 .017

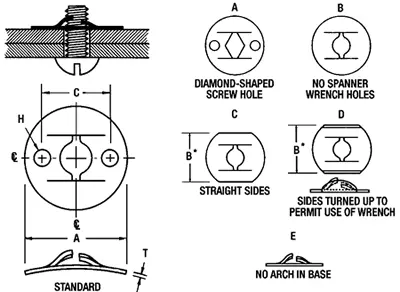

Flat-Type Washer ? Round


Flat-Type Washer - Round



Swipe
  Part Number Screw Size Design
Variation
A Length B Width C Center to Center H Hole Diameter T Material
Thickness
  C71046SS-4Z 4B BC .380 .250 -- -- .022
  C1000-632 6-32 BC .380 .340 -- -- .017
  C7868-832 8-32 BDE .820 -- -- -- .017
  C8642SS-017 10-24 Std. .570 -- .415 .103 .025
  C520-1032 10-32 ABC .570 .440 -- -- .017
  C71530-M61 M6X1 Std. 19.05 -- 10.42 2.40 .430
  C166-1420 1/4-20 BDE .820 .640 -- -- .025
  C15320-5618 5/16-18 ABCE .880 .690 -- -- .025
