Angle Bracket Fasteners

Angle Bracket Speed Nuts combine the conventional Angle Bracket with the Speed Nut principle of spring tension fastening to reduce the number of parts, speed assembly and provide structural strength. They are available in a wide variety of shapes and sizes and are applied in all industry from rugged con-struction to delicate electronics. Made from high quality heat-treated spring steel, they provide long life, they can be reused, and resist vibration loosening, even under the severest conditions such as aircraft applications.

The assembly of Angle Bracket Speed Nuts can be accomplished in several ways depending upon the nature of the assembly or the manufacturing facilities. They can be riveted, screwed, welded, latched, snapped or twist locked into blind locations. They provide reliable fastening points at any desirable position on the panel, chassis, frame, bulk-head, etc.

How to apply Angle Bracket Speed Nut Fasteners

The assembly of Angle Bracket Speed Nut can be accomplished in several ways depending upon the nature of the assembly or the manufacturing facilities. They can be riveted, screwed, welded, latched, snapped or twist-locked into blink locations. They provide reliable fastening points at any desirable position on the panel, chasis, frame, bulk-head, etc.

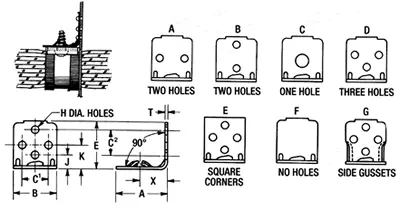

Angle Bracket FastenersMaterial:
All parts are Spring Steel, heat treated, unless otherwise specified. The only variations
available are those shown with suffix letters in the part number.
  • SS - Stainless Steel
  • BE - Beryllium Copper
  • P - Phosphur Bronze
The dimensions of the parts listed are envelope dimensions only. For complete design information, please contact us.
Swipe
  Part Number Screw or
Hole Size
Design
Var.
A
Length
B
Width
C1 C2 E
Height
H
Dia.
J K X T Matl
Thick
  C19185-6Z 6B C .450 .310 -- -- .390 .136 .240 -- .250 .022
  C8706-832 8-32 C .450 .310 -- -- .390 .136 .240 -- .250 .020
  C71731-8Z 8B C .745 .625 -- -- .745 .250 .375 -- .375 .028
  C6264-8Z 8B Std. .740 .630 .375 .375 ..740 ..105 .250 .380 .380 .028
  C15344-10A 10A CE .850 .500 -- -- .800 .171 .490 -- .540 .031
