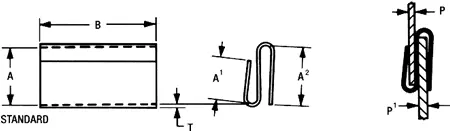

Tinnerman® S-Clips Fasteners are used for attaching panels with a spring cushion fastening that prevents chipping or crazing from expansion or strains in handling of shipment, eliminating holes in panels or flanges.

Tinnerman S-Clip Fasteners are used for attaching panels with a spring cushion fastening that prevents chipping or crazing from expansion or stains in handling of shipment. Eliminate holes in panel or flanges.



S-Clips Fasteners
S-Clips Fasteners

Metric Parts Listed In Italic
Swipe
  Part Number P Panel
Range
P1 Panel
Range

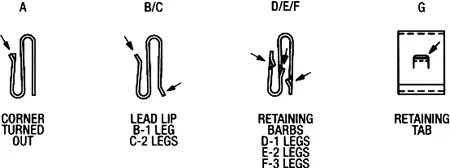

Design
Variation
A Length A1 Short
Leg
A2 Long
Leg
B Width T Matl.
Thick.
  C53241-020 .026-.032 .112-.118 CE .480 .450 .480 .380 .020
  C24649-017 .036-.044 .036-.044 CG .350 .360 .360 .380 .017
  C56268-034 .042-.066 .052-.076 CD .980 .680 .740 .500 .034
  C44684-020 .048-.065 .080-.110 CF .530 .400 .470 .380 .020
  C48766-020 .070-.080 .070-.110 CF .530 .390 .470 .380 .020
  C55113-020 .090-.130 .090-.130 CE .530 .390 .470 .380 .020
  C3952-025 .105-.146 .065-.075 Std .540 .500 .560 1.130 .025
  C58156-025 3.200-3.200 1.00-1.00 CF 9.950 12.750 7.150 7.500 .510
  C58156-025 .156-.187 .050-.080 BE .980 .610 .760 .500 .025
Material: All parts are Spring Steel, heat treated, unless otherwise specified. The only variations available are those shown with suffix letters in the part number.
