Dart-Type Fasteners

Dart-Type Fasteners

Dart-Type Fasteners

Tinnerman Dart-Type Fasteners are one of a group of Speed Clip Fasteners, which are self-sufficient. These fasteners require no screws, rivets, studs, welds or other secondary fastening devices. These fasteners require only a cavity or mounting hole. These fasteners can be applied from the front or top of a panel thereby eliminating many blind or limited access fastening problems. Being one-piece, these fasteners eliminate excessive small parts handling and parts inventories.

Once applied, live spring tension secures the components between the top and shoulders of the fastener. The amount of clamping action here varies with the material thickness and design of the fastener. When required, most Dart-Type Speed Clip Fasteners can be removed and reused.

How to apply Dart-Type Speed Clip Fasteners
Position Dart-Type fastener in mounting hole of panel or components to be secured.

As the fastener is pushed into the mounting hole, spring arms compress.

As the shoulders clear the panel they expand. This constant attempt to regain its original shape develops live spring tension between the shoulders and the top of the fastener - securing the panels between.

Dart-Type Fasteners

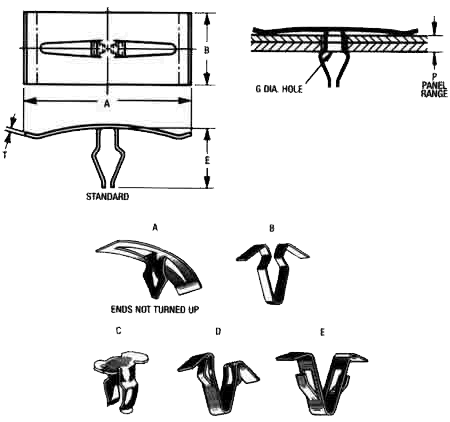

The dimensions of the parts listed are envelope dimensions only. For complete design information, please contact or send a drawing.

Metric Parts Listed In Italic

Swipe
  Part Number P Panel
Range
Design
Var.
A Length B Width E Height G Panel
Hole Dia.
T Matl.
Thick.
  C29943-014 .031-.041 C .550 .310 .500 .182-.192 .014
  C22149-014 .050-.075 C .550 .340 .490 .182-.192 .014
  C57973-014 .050-.090 B .875 .187 .400 .245-.255 .014
  C22395SS-014 .054-.086 Std. 1.720 .340 .650 .186-.191 .014
  C3860-022 .075-.150 A 1.050 .310 .390 .182-.192 .022
  C26740-020 .093-.110 B .410 .130 .560 .182-.192 .020
  C4792-017 .095-.140 D 1.080 .220 .550 .307-.317 .017
  C4925-022 .120-.130 C .630 .190 .530 .213-223 .022
  C24258-014 .140-.160 B .760 .130 .540 .182-.192 .014
  C4789-020 .165-.185 Std. 1.690 .340 .620 .187-.192 .020
  C40617-017 .185-.234 Std. 1.700 .340 .610 .187-.192 .017
  C3822-014 .192-.212 B .750 .130 .590 .182-.192 .014
  C20341-025 .224-.244 C .750 .310 .640 .307-.317 .025
  C43142SS-020 .300-.400 Std. 1.700 .340 .590 .213-.223 .020
Material: All parts are Spring Steel, heat treated, unless otherwise specified. The only variations available are those shown with suffix letters in the part number.
  • SS - Stainless Steel
  • BE - Beryllium Copper
  • P - Phosphor Bronze
