Tinnerman Cable Clamp
Tubing Clamp Fasteners

Tinnerman® metal cable, wire, and tubingclamp fasteners for mounting tube, conduit, cable, wire, or other cylindrically-shaped objects are available in a wide range of diameters, with standard sizes ranging from .062" to 2.000" in diameters. Larger fastener sizes are available on special order. Made of top quality materials, Tinnerman tube clamps provide strong, reliable retention and assure dimensional stability.

Available with dipped or extruded flame-resistant neoprene cushion to protect against abrasion or chafing, these fasteners can also be supplied with a self-retaining speed nut fastener on one leg for easier, vibration-resistant installations. This feature offers a tremendous advantage in close quarters, where loose or separate parts - such as nuts and lock washers -create excessive handling of small parts and unnecessary delays. The design of these metal clamps makes them the ideal answer when you need a cable clamp solution.

Special tubing clamp fasteners and custom designs can be developed to meet unique fastening requirements. Many examples of this are shown here and on the following pages.

How to Use Cable Clamps

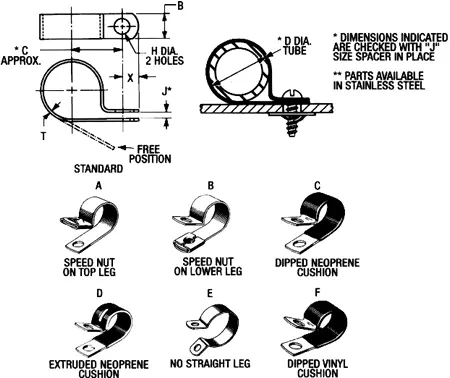

The standard tubing clamp fastener is formed to allow application over its prescribed tube diameter at any desired location without undue distortion. Once positioned on the tube, the screw is driven and the clamp legs draw together for a tight assembly. The speed nut fastener shown in place on this clamp reduces parts handling and accelerates assembly. Tinnerman cable clamps are available with or without the fastener in place.
Tubing Clamp Fasteners

Metric Parts Listed In Italic
Swipe
  Part Number D Tube
Dia.
Design
Variation
H Hole
Dia.
B Width Speed
Nut Size
C Ctr. To Ctr. *J Spacer
Thick.
X Ctr.
Hole
To Edge
T Matl.
Thick.
Alum. Steel
  C2980-00** .062 Std. .173 .380 -- .260 .031 .187 .020   .020
  C2980-0** .093 Std. .173 .380 -- .290 .031 .187 .032   .031
  C2980-1** .125 Std. .173 .380 -- .270 .031 .187 .032   .031
  C2981-2 .156 A .173 .380 8Z .310 .031 .187 .032   .031
  C4886-3** .187 Std. .199 .380 -- .330 .031 .187 .032   .031
  C2980-4** .250 Std. .173 .380 -- .360 .031 .187 .032   .031
  C4886-4** .250 Std. .199 .380 -- .360 .031 .187 .032   .031
  C2981-4 .250 A .173 .380 8Z .360 .031 .187 .032   .031
  C4983-4 .250 C .199 .380 -- .380 .031 .187 .032   .031
  C32607-4 .250 F .199 .380 -- .380 .031 .187 .032   .031
  C2980-5** .312 Std. .173 .380 -- .380 .031 .187 .032   .031
  C4886-5** .312 Std. .199 .380 -- .380 .031 .187 .032   .031
  C2981-5 .312 A .173 .380 8Z .380 .031 .187 .032   .031
  C4983-5 .312 C .199 .380 -- .410 .031 .187 .032   .031
  C3047-5 .312 AD .173 .380 8Z .410 .031 .187 .032   .031
  C2980-6* .375 Std. .173 .380 -- .410 .031 .187 .032   .031
  C4886-6* .375 Std. .199 .380 -- .410 .031 .187 .032   .031
  C2981-6 .375 A .173 .380 8Z .410 .031 .187 .032   .031
  C3046-6 .375 D .173 .380 -- .430 .031 .187 .032   .031
  C3050-6 .375 AC .173 .380 8Z .430 .031 .187 .032   .031
  C32601-6 .375 AF .173 .380 8Z .430 .031 .187 .032   .031
  C2980-7 .437 Std. .173 .380 -- .430 .031 .187 .032   .031
  C2980-8 .500 Std. .173 .380 -- .470 .031 .187 .032   .031
  C4886-8 .500 Std. .199 .380 -- .470 .031 .187 .032   .031
  C2981-8 .500 A .173 .380 8Z .470 .031 .187 .032   .031
  C3046-8 .500 D .173 .380 -- .480 .031 .187 .032   .031
  C3047-8 .500 AD .173 .380 8Z .480 .031 .187 .032   .031
  C3053-9 .562 AE .173 .380 8Z .530 .050 .187 .032   .031
  C41434-10 .625 Std. .203 .500 -- .640 .062 .250  ----    .031
  C2981-10 .625 A .173 .380 8Z .500 .062 .187 .032   .031
  C3053-10 .625 AE .173 .380 8Z .580 .050 .187 .032   .031
  C32607-10 .625 F .199 .380 -- .550 .062 .187 .032   .031
  C2981-11 .687 A .173 .380 8Z .540 .062 .250 .064   .031
  C3050-11 .687 AC .199 .500 10Z .720 .062 .250 .064   .031
  C2980-12 .750 Std. .199 .500 -- .720 .062 .250 .064   .031
  C3048-12 .750 BD .199 .500 10Z .720 .062 .250 .064   .031


Material: All parts specified are available in high carbon spring steel or aluminum as indicated.

Contact Bolt Products to find the Tinnerman metal cable, wire, and tubing clamp that is right for your application.
