The GESIPA American blind rivet nut provides a method for self-captivating an internally threaded nut in a blind, non-accessible work piece. Blind rivet sections that were previously too thin to tap threads can now be accommodated with the required number of threads designed for standard thread engagement.
GESIPA also offers a complete line of metric blind rivet nuts from M4 to M10 sizes. Contact GESIPA for metric rivet nut specifications.
See our selection of manual and power Blind Rivet Installation Tools.

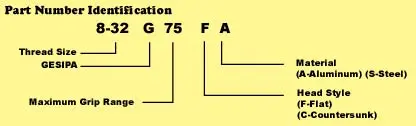

![Blind Rivet Nut Part Numbers](includes/work/image_cache/webp/2eeffc85759aecf6c95cc118adfca855.thumb.webp)
* Material code Suffix:
A=Aluminum; Standard finish - plain
S=Carbon Steel; Standard finish - zinc plate
![Swipe](includes/work/image_cache/webp/f443fc288f9c2fec94f6a47639b558ae.thumb.webp)
BLIND RIVET NUTS Inch Size | ||||||||
---|---|---|---|---|---|---|---|---|
Head Style |
Rivet Dia. | GESIPA Part Number |
Grip Range (Inches) |
Hole Size Drill No. |
Dimensions | |||
D | B | A | L | |||||
Flat | 8-32 | 8-32G75F* | .010-.075 | .221-.226 #2 |
.221 | .032 | .357 | .438 |
8-32G120F * | .075-.120 | .500 | ||||||
8-32G160F* | .120-.160 | .500 | ||||||
10-32 UNF Fine Thread 10-24 UNC Coarse Thread |
10-XXG80F* | .010-.080 | .250-.256 E |
.250 | .038 | .406 | .531 | |
10-XXG130F* | .080-.130 | .594 | ||||||
10-XXG180F* | .130-.180 | .641 | ||||||
1/4-20 | 1/4-20G80F* | .020-.080 | .332-.338 Q |
.332 | .058 | .475 | .625 | |
1/4-20G140F* | .080-.140 | .687 | ||||||
1/4-20G200F* | .140-.200 | .750 | ||||||
1/4-20G260F* | .200-.260 | .812 | ||||||
5/16-18 | 5/16-18G125F* | .030-.125 | .413-.423 Z |
.413 | .062 | .665 | .750 | |
5/16-18G200F* | .125-.200 | .875 | ||||||
5/16-18G275F* | .200-.275 | .937 | ||||||
3/8-16 | 3/8-16G115F* | .030-.115 | .490-.500 #12.5mm |
.490 | .088 | .781 | .844 | |
3/8-16G200F* | .115-200 | .938 | ||||||
3/8-16G285F* | .200-.285 | 1.031 |
![]() |
