Wire Termination: Appliance Terminal Block

Heyco® Standard Appliance Terminal Blocks Screw to Screw


Heyco® Standard Appliance Terminal Blocks Screw to Screw

Underwriters’ LaboratoriesRecognized under the Component Program of Underwriters’ Laboratories File #E-197025
Canadian Standards Association Certified by Canadian Standards Association File #LR-210961



Appliance Terminal Block Specs:

Swipe
Wire Size Amps
N. Am.
Poles Part No. Desc. Screws
(mm)

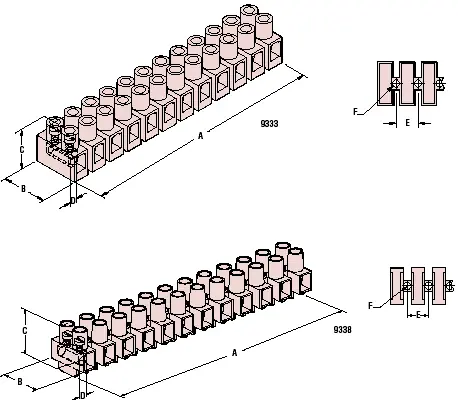

Part Dimensions
AWG MMF Natural Brown A B C D E F
in mm in mm in mm in mm in mm in mm
12-22 2,5 20 2 9329 9359 TB 0B-2P M 2,6 3.69 93,6 .64 16,2 .61 15,4 .11 2,8 .32 8,0 .11 2,8
3 9330 9360 TB 0B-3P
12 9333 9363 TB 0B-12P
10-20 4 30 2 9334 9364 TB 1B-2P M 3,0 4.58 116,4 .73 18,6 .67 17,0 .14 3,6 .39 10,0 .14 3,6
3 9335 9365 TB 1B-3P
12 9338 9368 TB 1B-12P
8-14 6 50 2 9339 9369 TB 2B-2P M 3,5 5.26 133,5 .87 22,2 .62 20,8 .17 4,2 .45 11,5 .15 3,7
3 9340 9370 TB 2B-3P
12 9343 9373 TB 2B-12P
6-10 16 55 2 9344 9374 TB 3B-2P M 4,0 6.89 175,0 .99 25,2 1.04 26,3 .23 5,8 .59 15,0 .20 5,1
3 9345 9375 TB 3B-3P
12 9348 9378 TB 3B-12P
Standard nylon fastener Colors: Natural. Flame retardant brown available at extra charge.
*Consult Bolt Products for other pole configurations.
Parts available without raised base.

Heyco® Standard Appliance Terminal Blocks Screw to Screw
  • Terminal block allows standardization of the SOLID WIRE Cordset. Input and output wires are always secured with a screw.
  • Modern low profile nylon fastener design occupies less "real estate" inside the appliance terminal block.
  • No exposed metal parts. Terminal blocks "Dead front" designed safety.
  • Pressure clamp nylon fastener connectors are supplied in the open position, ready accept single or multiple solid conductors.
  • To meet European requirements, your application may need a terminal block between the power supply cord and internal electricals.
  • Popular 2, 3 and 12 pole configurations are shown in the tabular chart. Please note that from 1 to 11 poles may be cut to order for your terminal block. Consult Heyco.
  • All nylon fastener sizes are rated at 300 volts (450 volts in Europe).
  • Terminal block metal parts feature galvanized steel screws and galvanized brass inserts.
  • Standard natural parts are molded of type 6 nylon. Flammability classification 94V-2; temperature index 115°C (except TB 3B-140°C).
  • Terminal blocks available in 94V-O flame retardant (FR), glass-filled nylon 6/6 material. Temperature index 140°C (except TB 3B-170°C).
Heyco® Standard Appliance Terminal Blocks Screw to Screw
