Heyco® Nylon Cable Clamps


Heyco nylon cable clamps Underwriters Heyco cable clamps are recognized under the Component Program of Underwriters' Laboratories File #E-54523

  • Cable clamps are for clamping cable or tubing securely into place.
  • All nylon fastener parts and nylon cable clamps are size marked in inches and millimeters.
  • Cable clamps are molded of nylon for resistance against corrosion, salt water, weak acids, gasoline, alcohol, oil, grease and common solvents.
  • Heyco’s nylon cable clamps conform to the following mil spec:
    Mil Std 24E
    Mil C-21565 (NAS)
    Mil P-17091-B
  • Arrow clips and push-in nylon fasteners are suitable for securing Heyco Cable Clamps.
  • Cable clamps are molded of type 6/6 nylon.  ASTN D-4066; flammability classification 94V-2.
  • Heyco nylon cable clamps have a temperature rating 85°C.

    Heyco Labkit No. 5 (Part# 3399)
    Contains 285 nylon cable clamps in 18 different sizes, both standard and heavy duty, for 1/8" (3,2mm) to 1-1/2"(38,1mm) diameter applications.

    Standard color: Black. White available at extra charge. Nylon cable clamps available in other colors at extra charge (only in large quantities).

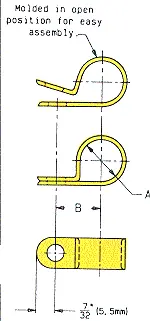

Light Duty Nylon Cable Clamps: 3/8"(9,5mm) Wide, .050"(1,3mm) Thick.
Swipe
Mounting
Hole
Diameter		 Screw
Size		 Part No. UL/CSA
Description		 Part Dimensions
in.       mm. Black Natural "A" "B"
in.        mm. in.        mm.
.170         4,3 8 3362 3312 CCL125-170 .125            3,2 .343            8,7
.170         4,3 8 3363 3313 CCL187-170 .187            4,8 .378            9,6
.170         4,3 8 3364 3314 CCL250-170 .250            6,4 .421         10,7
.170         4,3 8 3365 3315 CCL312-170 .312            7,9 .441         11,2
.170         4,3 8 3366 3316 CCL375-170 .375            9,5 .464         11,8
.170         4,3 8 3367 3317 CCL437-170 .437         11,1 .500         12,7
.170         4,3 8 3368 3318 CCL500-170 .500         12,7 .530         13,5
.203         5,2 10 3352 3302 CCL 1/8 .125            3,2 .343            8,7
.203         5,2 10 3353 3303 CCL 3/16 .187            4,8 .378            9,6
.203         5,2 10 3354 3304 CCL 1/4 .250            6,4 .421          10,7
.203         5,2 10 3355 3305 CCL 5/16 .312            7,9 .441          11,2
.203         5,2 10 3356 3306 CCL 3/8 .375            9,5 .464          11,8
.203         5,2 10 3357 3307 CCL 7/16 .437          11,1 .500          12,7
.203         5,2 10 3358 3308 CCL 1/2 .500          12,7 .530          13,5


Heavy Duty Nylon Cable Clamps: 1/2"(12,7mm) Wide, .060"(1,5mm) Thick.
Swipe
Mounting
Hole
Diameter		 Screw
Size		 Part No. UL/CSA
Description		 Part Dimensions
in.       mm. Black Natural "A" "B"
in.        mm. in.        mm.
.203         5,2 10 3374 3324 CCH 1/4 .250            6,4 .437          11,1
.203         5,2 10 3375 3325 CCH 5/16 .312            7,9 .474          12,0
.203         5,2 10 3376 3326 CCH 3/8 .375            9,5 .500          12,7
.203         5,2 10 3377 3327 CCH 7/16 .437          11,1 .533          13,5
.203         5,2 10 3378 3328 CCH 1/2 .500          12,7 .553          14,1
.203         5,2 10 3379 3329 CCH 9/16 .562          14,3 .603          15,3
.203         5,2 10 3380 3330 CCH 5/8 .625          15,9 .625          15,9
.203         5,2 10 3381 3331 CCH 11/16 .687          17,4 .665          16,9
.203         5,2 10 3382 3332 CCH 3/4 .750          19,1 .699          17,8
.203         5,2 10 3383 3333 CCH 13/16 .812          20,6 .765          19,9
.203         5,2 10 3384 3334 CCH 7/8 .875          22,2 .795          20,2
.203         5,2 10 3390 3340 CCH 1 1.000        25,4 .825          20,9
.203         5,2 10 3392 3342 CCH 1-1/8 1.125        28,6 .940          23,8
.203         5,2 10 3393 3343 CCH 1-3/16 1.187        30,1 .963          24,5
.203         5,2 10 3394 3344 CCH 1-1/4 1.250        31,8 .980          24,9
.203         5,2 10 3396 3346 CCH 1-3/8 1.375        34,9 1.045        26,5
.203         5,2 10 3398 3348 CCH 1-1/2 1.500        38,1 1.114        28,3
