Beaded Ties, Heyco Nylon Ties - Bolt Products

Heyco Products
Wire Positioning
Cable Clamps | Lockit Loops | Adhesive Backed Extruded Wire Clips | Push Mount Wire Clips | Wire Clips "J" and "C" Style | Wire Clips "U" Style | Vinyl Wire Clips | Non-Locking Adhesive-Backed Clips/Flat Wire Clips | Wire & Cable Holders | Adhesive Backed Holders | Strap Mates | Value-Line Cable Ties | Nytyes Cable Ties | Beaded Ties | Nytye Mounting Platforms | Braided Sleeving | Cable Wrap | Labkits

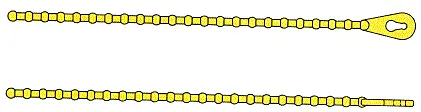

Heyco® Beaded Ties
Heyco® Beaded Ties
  • Releasable and reusable beaded ties for easy bundling, closing, bagging, holding and tying.
  • Beaded ties are available in polyethylene for high flexibility and moderate strength or nylon for less flexibility and more strength with high resistance to temperature and chemicals.
  • Beaded ties sizes for bundles up to 4" (101,6mm) diameter.
  • Polyethylene ties available in natural, black and red colors.
  • Nylon ties available in natural and black colors only.
Swipe

Part Specifications/Dimensions

Part No.

Material Tensile
Strength
Maximum
Bundle
Diameter
Overall
Length
Black Natural Red
Lbs.          N in.            mm.
Polyethylene 10               45 1-1/8      28,6 4-5/32       106 3419 3420 3422
1-3/8      35,0 5                127 3424 3425 3427
18               80 1-7/8      48,0 6-1/2         165 3429 3430 3432
2-1/2      64,0 8-11/16     220 3434 3435 3437
3              76,0 10-11/16   272 3439 3440 3442
4           101,6 14               356 3484 3480 3482

NYLON

40         180 1-1/8          28,6 4-1/4            108 3509 3490
1-3/8          35,0 5-3/32          129 3519 3491
75          338 1-7/8          48,0 6-19/32        167 3523 3492
2-1/2          64,0 8-7/8            225 3524 3493
3                 76,0 10-27/32       275 3495 3494
4               101,5 14                356 3498 3496
