Heyco® Liquid Tight Straight-Thru Fittings For Flexible Cords

Heyco Products

Liquid Tight Tubing, Electrical Conduits & Nylon Conduit Fittings
Right Angle Fittings PG | Right Angle Fittings NPT | Flex I-Fittings | Flex II-Tubings | Flex V-Slit Tubing | FlexNylon Snap-In | FlexNylon Straight | FlexNylon Sweep | Flex III Halogen Free Straight | Flex IV Nylon Straight/Snap-In | Flex Mounting Brackets/Knock-Out Seals | Sealing Washers | Liquid Tight Straight-Thru Fittings | Liquid Tight Straight-Thru Fittings For Flexible Cords | Liquid Tight Pigtail Fittings | Liquid Tight Pigtail Fittings For Flexible Cords | Steel Straight Connectors - PG Thread Caps | Metal Cord Grip Fittings | PG Hub Liquid Tight Fittings - Labkit | Straight Quick Twist Connector (snap and NPT threaded) |
Sweep Quick Twist Connector (snap and NPT threaded)

Heyco® Liquid Tight Straight-Thru Fittings For Flexible Cords
Heyco® Liquid Tight Straight-Thru Fittings For Flexible Cords US PATENT No. 5,405,172
Foreign Patents
Underwriters' Laboratories Listed under Underwriters' Laboratories File #E-51579
Components Program of Underwriters' LaboratoriesRecognized under the Components Program of Underwriters' Laboratories File #E-51579
Canadian Standards AssociationCSA Certified by Canadian Standards Association File #LR-93876.

NPT HUBS-Install in either clearance or threaded holes

Swipe

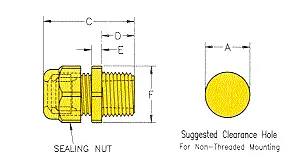

  A C D E F


Part No.

  Clearance
Hole
Max. O.A.
Length
Thread Length Wrenching
Nut Thk.
Wrenching
Flats
Min. Dia. Max. Dia. Black Gray UL/CSA in.     mm. in.     mm. in.     mm. in.     mm. in.     mm.
.069    1,8 .187  4,7 3458 3459 RLTF 3/8 .670  17,0 1.49  37,8 .53    13,5 .20      5,1 .75    19,1
.181    4,6 .312  7,9 3228 3229 LTF 3/8 .670  17,0 1.49  37,8 .53    13,5 .20      5,1 .75    19,1
.170    4,3 .470  11,9 3231 3232 RLTF 1/2* .875  22,2 1.72  43,7 .62    15,7 .20      5,1 .95    24,1
.230    5,8 .546  13,9 3200 3201 LLTF 1/2* .875  22,2 1.83  46,5 .62    15,7 .23      5,8 1.05  26,7
.450  11,4 .709  18,0 3234 3235 LTF 3/4* 1.068/27,1 1.97  50,0 .63    16,0 .23      5,8 1.30  33,0
.250   6,4 .485  12,3 3460 3461 RLTF 3/4 1.068/27,1 1.97  50,0 .63    16,0 .23      5,8 1.30  33,0
.472 12,0 .787  20,0 8439 8440 RLTF 1* 1.375/35,0 2.42  61,5 .78    19,8 .28      7,1 1.66  42,2
.590  15,0 1.00  25,4 8437 8438 LTF 1* 1.375/35,0 2.42  61,5 .78    19,8 .28      7,1 1.66  42,2



Standard nylon fastener colors:  Black or Gray.  Locknut not included.
*Underwriters' Laboratories Listed Under Underwriters' Laboratories

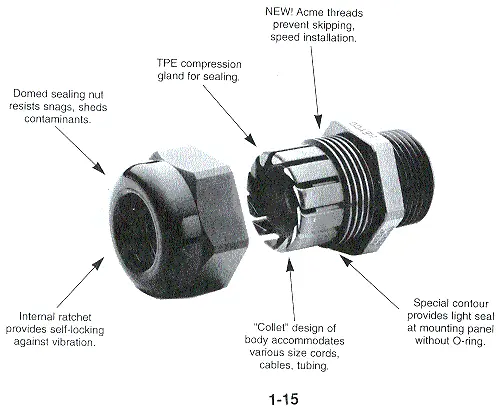

  • NEW! Acme threads on nylon fastener body prevent skipping; speed installation.
  • "PG" hub threads are steel conduit threads per DIN 40430. For DIN 40430 see page 1-20.
  • Seventeen nylon fastener sizes for cable, tubing, etc. with diameters ranging from .064"(1.6mm) to 1.732"(44,0mm).
  • All nylon construction with TPE gland resists salt water, weak acids, gasoline, alcohol, oil, grease and common solvents.
  • Working temperatures:-22°F (-30°C) to 212°F (100°C). For short periods to 302°F (150°C).
  • Protection class IP 68 per DIN 40050 up to 70 psi (5 bar) water pressure.
  • Nylon fastener is suitable for NEMA type 4 and 6 enclosures.
  • Locknuts are included. For nylon fastener locknut specifications or to order locknuts separately see page 1-13.
  • We recommend using the smallest maximum diameter nylon fastener fitting that will fit your application.
    Click here to see our guide on choosing the best LTF for your application.
    Click here for our Detailed Installation Instructions.
    Click here for Recommended Torque Chart.
