Heyco® Steel Straight Connectors For Liquid Tight Conduits

Heyco Products

Liquid Tight Tubing, Electrical Conduits & Nylon Conduit Fittings
Right Angle Fittings PG | Right Angle Fittings NPT | Flex I-Fittings | Flex II-Tubings | Flex V-Slit Tubing | FlexNylon Snap-In | FlexNylon Straight | FlexNylon Sweep | Flex III Halogen Free Straight | Flex IV Nylon Straight/Snap-In | Flex Mounting Brackets/Knock-Out Seals | Sealing Washers | Liquid Tight Straight-Thru Fittings | Liquid Tight Straight-Thru Fittings For Flexible Cords | Liquid Tight Pigtail Fittings | Liquid Tight Pigtail Fittings For Flexible Cords | Steel Straight Connectors - PG Thread Caps | Metal Cord Grip Fittings | PG Hub Liquid Tight Fittings - Labkit | Straight Quick Twist Connector (snap and NPT threaded) |
Sweep Quick Twist Connector (snap and NPT threaded)

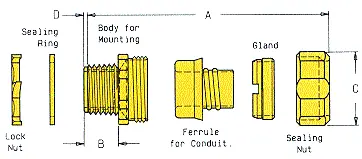

Heyco® Steel Straight Connectors For Liquid Tight Conduits
Heyco® Steel Straight Connectors For Liquid Tight Conduits
Swipe
    Part No.   A B C D
Trade Size Nominal
Mounting
Hole Diam
in.        mm.
Insulated
Throat
UL/CSA
in.     mm.

in.     mm.

in.     mm.

in.      mm.
3/8* .875    22,2 9151 STR 38 1.218  27,9 .500   12,7 1.031  26,2 .062    1,6
1/2 .875    22,2 9153 STR 50 1.312  34,0 .500   12,7 1.125  28,6 .062    1,6
3/4 1.375  28,2 9155 STR 75 1.437   32,3 .531   13,5 1.375  34,9 .078    2,0

* 1/2" K.O. ** Add for Nylon Insulated Throat
  • For use with Heyco -Flex I Conduit.
  • Available with or without insulated throat.
  • Nylon construction features a"deep draw" stamped steel ferrule which functions together with a "castled" compression ring to create a liquid tight seal on the conduit.
  • Polypropylene O-ring for nylon fastener sealing at the panel.
  • Stamped steel locknut included.
  • Made of corrosion resistant machined steel. Zinc plated with special brighteners for an attractive finish.
Heyco® Steel Straight Connectors For Liquid Tight Conduits
Heyco® PG Thread Taps For Steel Conduit Threads per DIN 40430
Heyco®PG Thread Taps For Steel Conduit Threads per DIN 40430
Swipe
      Part Numbers
Thread Type
and Size
Tap Drill
Diameter
mm.
Description    Starting    Finishing Major
Diameter
mm.
Length
Overall
mm
Length
Thread
mm.
Pg 7 11,5 PG-T 7 0150 0151 12,5 63,0 20,0
Pg 9 14,0 PG-T 9 0153 0154 15,2 70,0 20,0
Pg 11 17,3 PG-T 11 0156 0157 18,6 80,0 22,0
Pg 13,5 19,0 PG-T 13,5 0159 0160 20,4 80,0 22,0
Pg 16 21,3 PG-T 16 0162 0163 22,5 80,0 22,0
Pg 21 27,0 PG-T 21 0165 0166 28,3 90,0 22,0
Pg 29 35,5 PG-T 29 0168 0169 37,0 110,0 25,0

  • Use a Starting Tap for through-hole applications.
  • For blind holes, thread first with a Starting Tap; finish bottoming the threads
    with a Finishing Tap.
  • Flank angle 80°.
  • Made of high-speed steel with ground threads for greater accuracy to assure liquid tightness.
  • Suitable for cutting alloy steel, bronze and stainless.
Heyco®PG Thread Taps For Steel Conduit Threads per DIN 40430
Enter Part Number

Help Me Choose
Join Our Email List
Email:
SafeSubscribe Label
