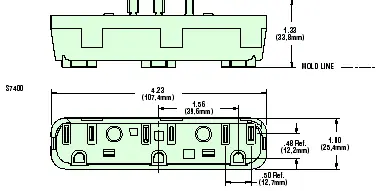

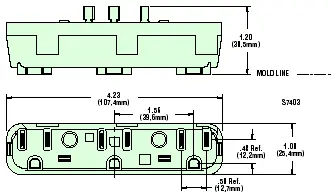

Heyco® Tri-Tap Premold

Heyco® Tri-Tap Premold

Heyco® Tri-Tap Premold
Heyco® Tri-Tap Premold

• Multiple piece unit that reduces the number of crimp connections on an extension cord from 9 down to 3.
 Now you can crimp all 3 terminals at once.
• Significantly reduces the amount of material required for overmolding, thus substantially reducing the cycle time
and cost.
• Available in assembled or component form.
• Molded of high impact resistant 6/6 nylon.
• Rated at 125 Volts and 15 amps.
• Terminating equipment is available.  Consult Heyco for details.
